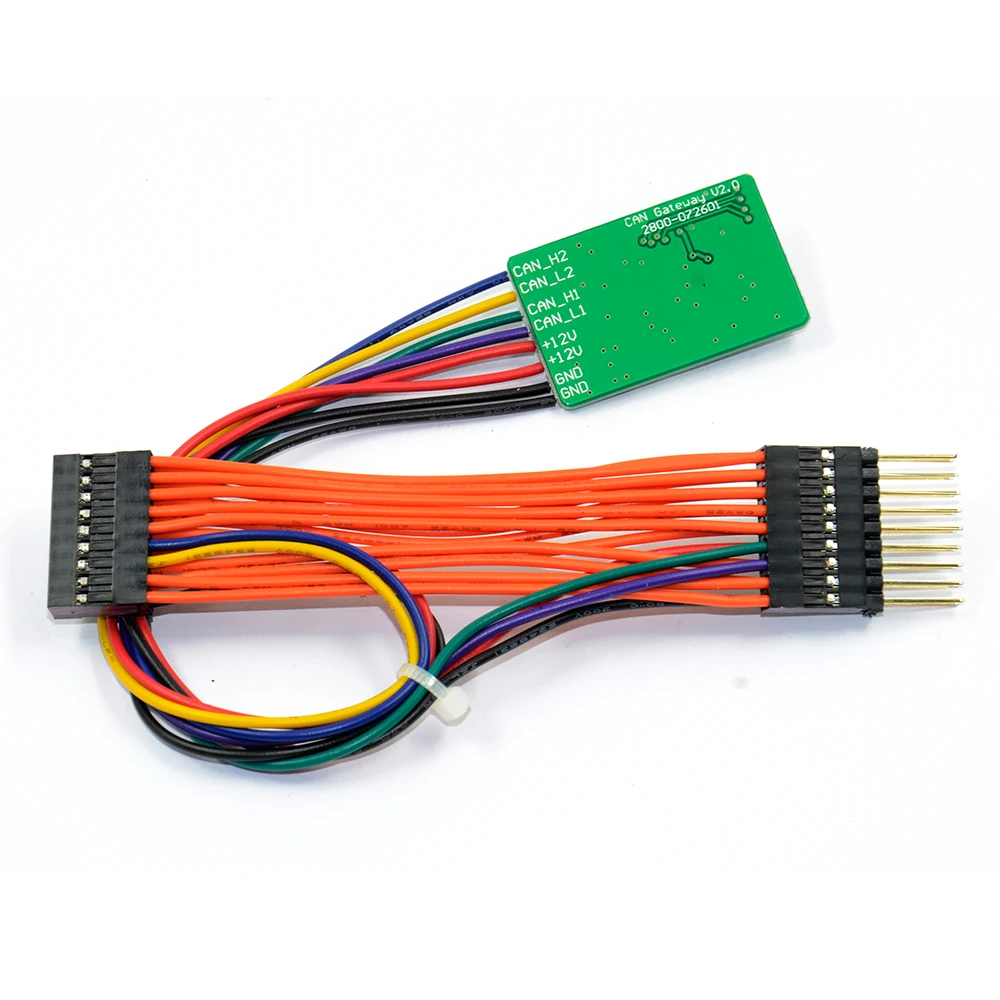

Hot selling Original Yanhua MB CAN Filter 18 in 1 For Benz/For BMW Universal filter

1.CAN Filter 18 in 1 Support Model:

S (W222) C (W205) V (W447)

S (W221) C (W204) E (W212)

E (W207) A (W176) G (W46)3

ML (W166) SL (R231) GL (X166)

B (W246) CLS (W218) SLK (R172)

SLS (W197) CLA (W117) GLK (X204)

For BMW： CAS4/FEM Fxx

2.For BMW Support Model:

   For BMW 1 series F2X, 3 series F3X, for BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect dirrectly to instrument panel);

   For BMW 5 series F10，7 series F01/02 etc., CAS4 Fxx chasis.( F01,F02,F07,F18,F10,F20,F25,X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

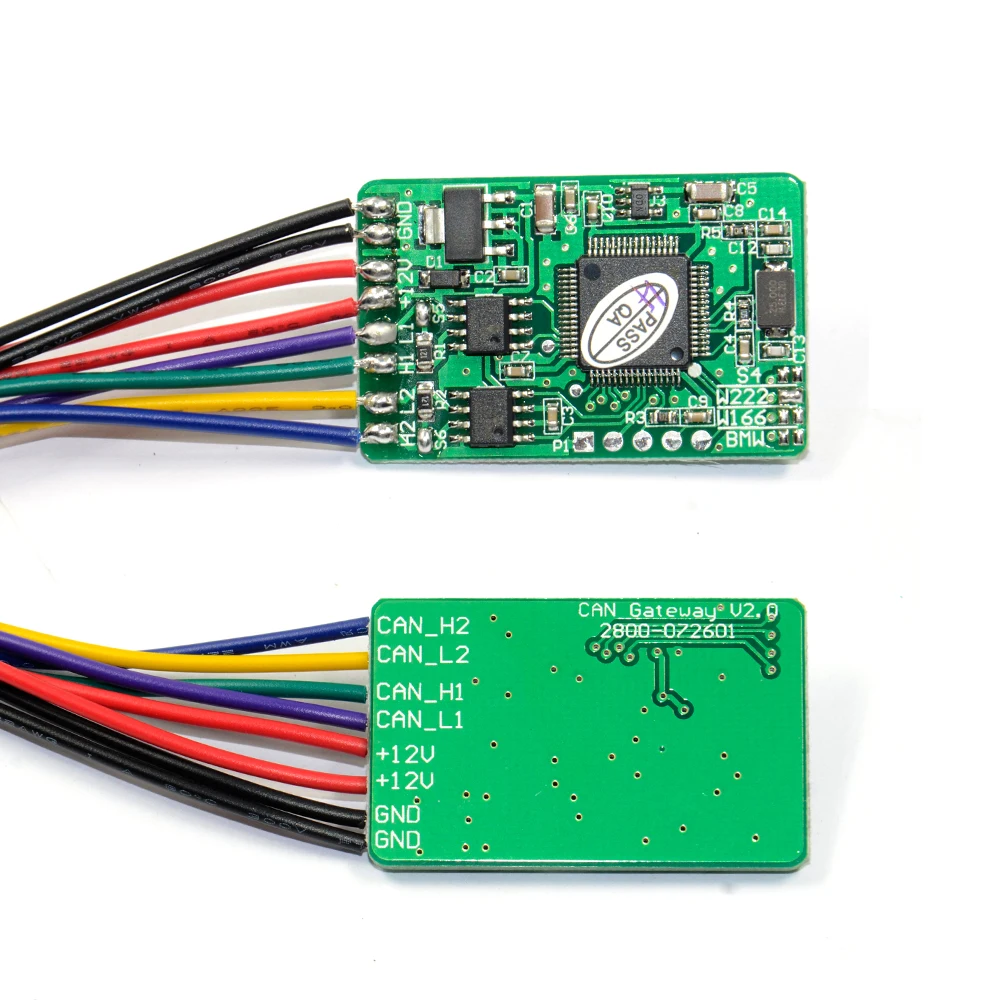

This filer is universal for multiple car models, small and convenient, easy operated, which with stable performance and reliability.

NOTICE!!
New style: 222/205/217
Old style: 166/212/463

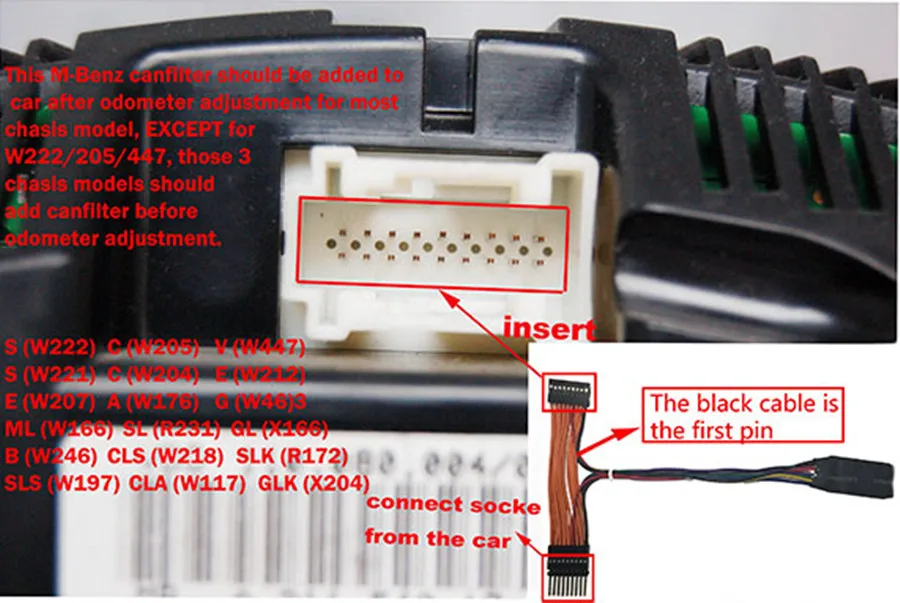

CHECK the car modele correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

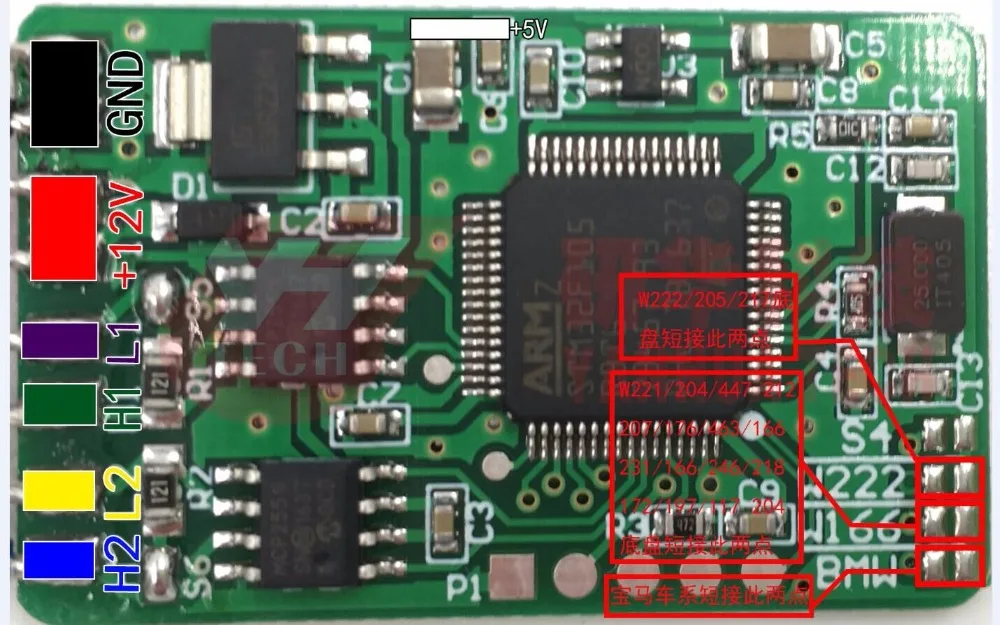

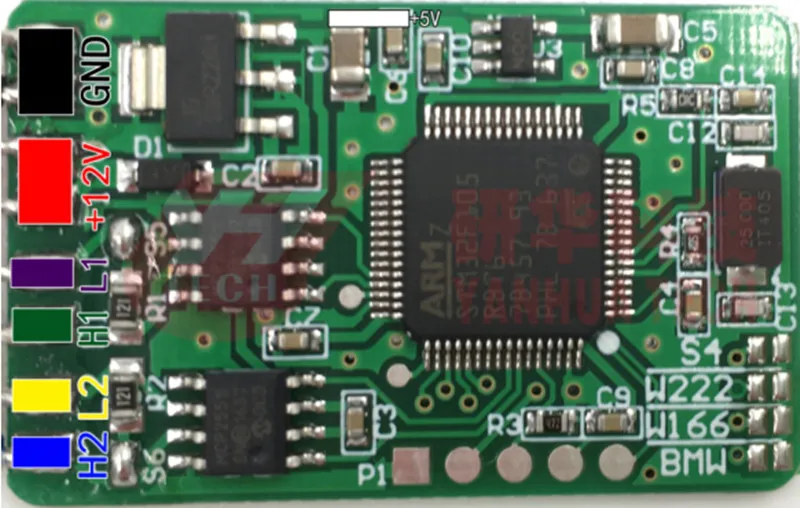

YH for Benz/BMW Universal filter --- Diagram for BMW

Below is illustration for wiring:

Black  --------- GND                   Red --------- +12V      White  --------- +5V

Purple  -------- L1（CAN_L1）    Green --------- H1（CAN_H1）

Yellow --------- L2（CAN_L2）    Blue --------- H2（CAN_H1）

NOTICE! Please connect the 2 for BMW dot together(short circuit) BEFORE connect to car!

Below is the diagram for BMW 1 series F20 instrument:

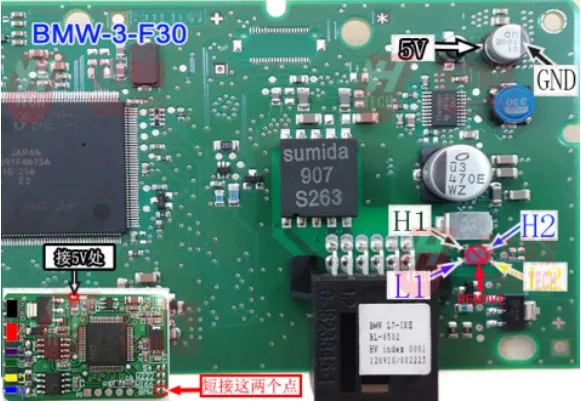

Below is for BMW 3 series F30 instrument:

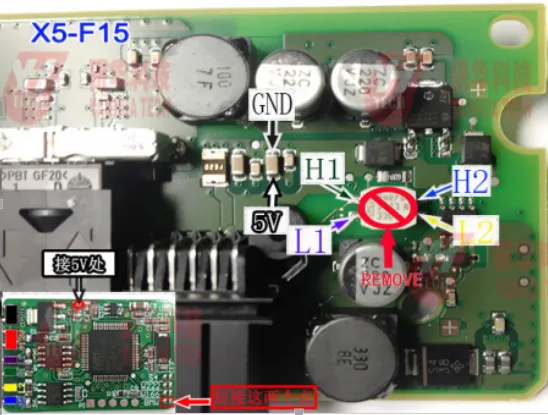

Below is the diagram for BMW X5 F15 instrument:

Below is the diagram for BMW FEM:

Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)

Package including:

1pc x Yanhua MB CAN Filter 18 in 1 for Benz/for BMW Universal filter
