Panasonic CF19, 4G memory, without HD

1. New MB SD Connect Compact 4 Star Diagnosis support wireless diagnose;

2. New MB SD Connect Compact 4 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR C4 main board do not have UDS chip, so old MB STAR C4 can not support it;

3. Multiplexer now use Lan cable to connect

4. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;

5. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;

Laptop: Second hand, but with top quality

Software update to 2019.05，EPC update to 2018.11, WIS update to 2019.01

MB SD Connect Compact 4 Supported Vehicle List:

MB SD C4 Support Cars After Year 1989

Passenger Car Support List:

A(176),  A(169),  A(168),  B(246),  B(245),  CLC(117),  C(204)  C(203),  C(202),  190(201),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),  S(220),  S(140),  S(126),

E(207),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140)  SLK(172),  SLK(171),  SLK(170),  SL(231),  SL(230),  SL(129),  SL(107),  SLS(197),

M(166),  M(164),  M(163),  G(463),  G(461),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),S(220),  S(140),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),

CL(215),  CL(140),  SLK(172),  SL(231),  SL(230),  SL(129),  SL(107),SLS(197),  M(166),  M(164),  M(163),  G(460),  GL(164),  GLK(204),  R(251)

Van Support List:

MB 100(631),  T1,  SprinterIII,  SprinterII,  SprinterI,  Sprinter900,  Citan,  Vito(639),  Vito(638), V(638),   Viano(639),  T2,  Vario,  Vaneo(414)

Truck Support List:

Actros963/4,  Actros2,3,  AtegoIII,  AtegoII,  AxorII,  Eonic,  Zetros,  Actros,  Atego Light,  Atego Heavey,  HPN M96,  Atron,  HPN M2000,  SKL,  FSK,  Further model series

Unimog Support List:

U20,  UGN,  UHN

Bus Support List:

TRAVEGO,  INTOURO,  INTEGRO,  CITARO,  CAPACITY,  CITO,  TOURISMO,  O350/O403, CONECTO,  O404,  O405-O408,

Minibus,  OC500,  TOURO,  TOURINO,  MBC,  MULITEGO,  O500,  O500/OH,  OH,  OH368,  OF,  OF384,  LO,  O400,

FURTHER MODEL SERIES

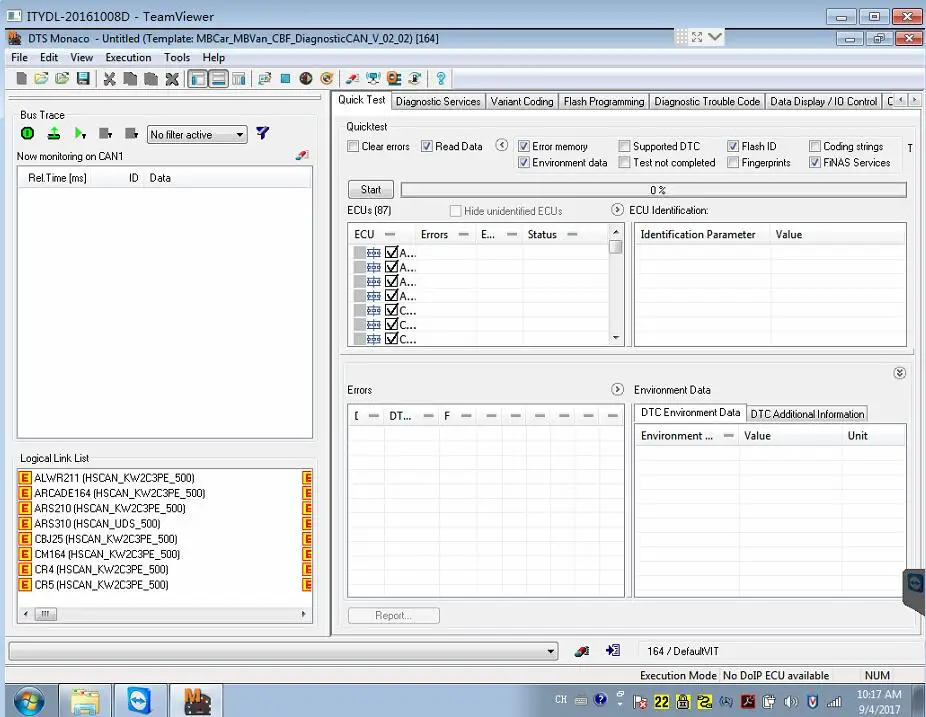

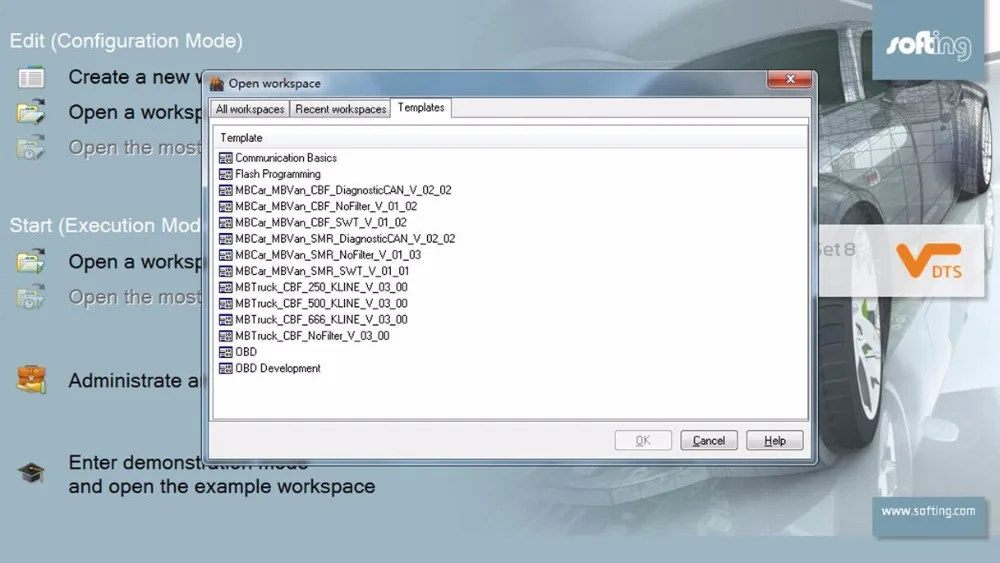

"Introduction to DTS-monaco"

1.DTS-monaco is the official software used in development engineers.

2.DTS Monaco is a controller for vehicle diagnosis and general engineering test terminals of the controller functions. The Monaco is derived from the name used for modular Analyzer traffic.

3.DTS Monaco covers all areas of engineering, testing, and production test preparation for all tasks

4. in the maintenance tests it is the ultimate authority, perfect support for C4 (SDconnect) and (Ecom) hardware

"Features"

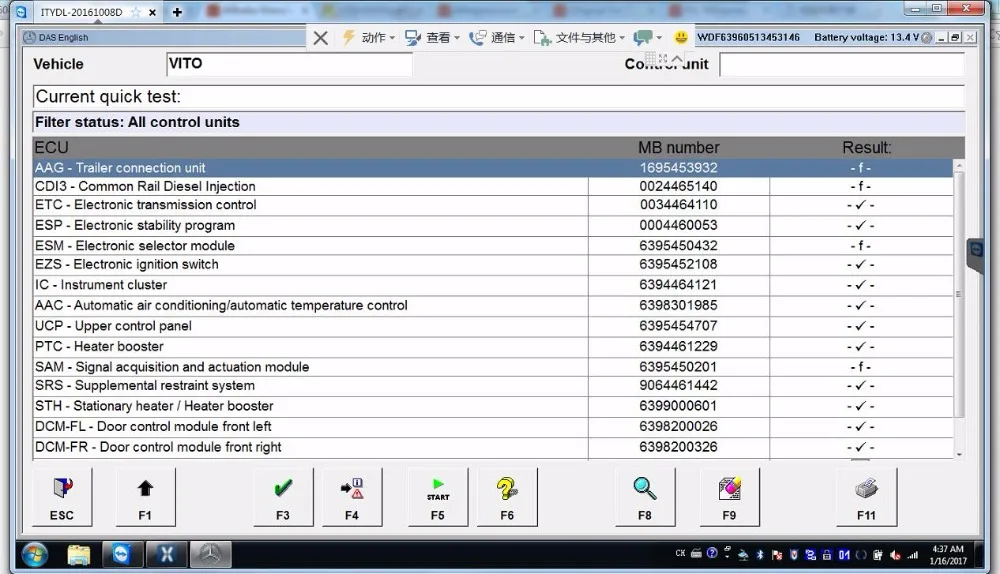

Quick Test; the vehicle ECU for rapid testing, test at the same time, you can choose to edit more functionality.

Variant Coding; add VO-delete VO variation functional.

ID identification; one-click to read the whole car and saved, all module programming.

Complete Variant Coding; read all ECUcoding vehicle data in one pass, write again to the vehicle, completely offline.

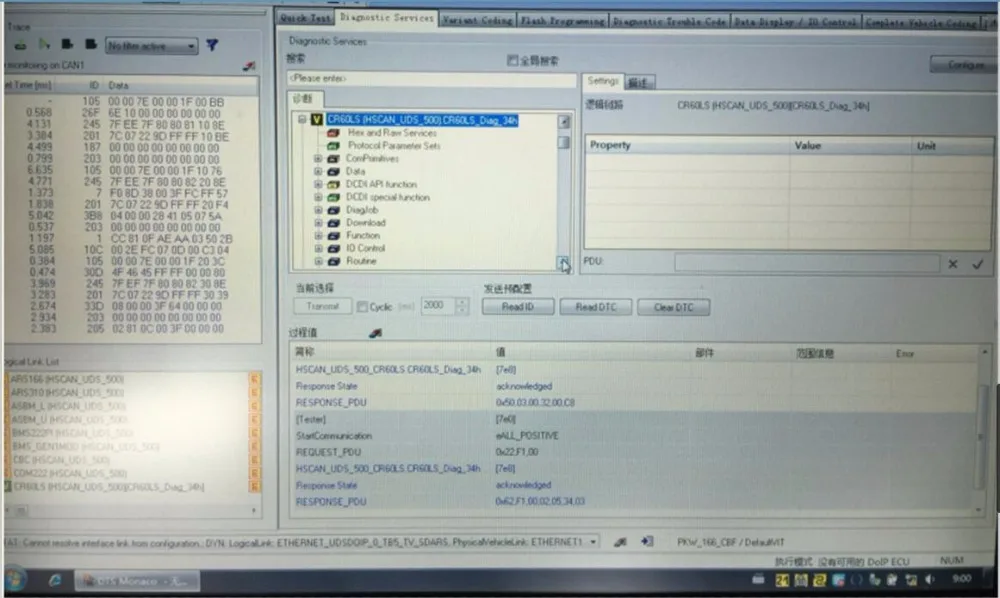

Diagnostic Services and advanced features can see internal and external data you choose modules, open computer authorization (not authorized), activate the ECU reset ECU, modifying the original chassis number.

Flash programming; completely off-line programming,

Diagnostic Trouble Code diagnosis module DTC trouble code.

ECU Exchange; two of the same ECU, are exchanged by reading the data to import the data.

Symbolic trace: recording a trace file%

Basic programming set code function:

1 unit for off-line programming

2, a key to off-set code

3, W166, cancel the programmed number of calculation method of urea, one perfect canceled all 166 urea system.

The new c s-series to the factory installed conversion:

4, 222, 205 installing fragrance systems

5, 2015, paragraph 212, changing traffic light permanently lit

6, 212, 204, adding electric ear

7, 222 205 HU5 traffic solution for DVD video

8, W164 closed recycling system

9, W205, retro atmosphere lamp

10, 205, 222 adding electric ear electric trunk, the trunk kicking function

11, 166, how to modify the gateway set up codes

12, 166 meters finished degrees Fahrenheit to degrees Celsius

13, US standard maintenance mileage be set to the number of miles

14, 164 disabled diesel particle filter regeneration system

15, 166 canceled urea

16, 205 added electric rear vision mirror

17, HU45 regional Chinese resolve lock

18, W204 W166 foldable rear-view mirror

19, change the 166 on board, display in Celsius

20, W212 disable ECO configurations

21, activate the HOLD function ABR2XT

22, open W22 looked up appears

23, the AMG sports package enabled W212

24, the air bag computer reset factory State W166

25, to increase the brightness of the color instrument cluster s W222

26, 722.97g to install the steering wheel shift paddles

27, W221 AMG W216 dashboard style

28, airbag ECU unlock W204 212

29, disabled child seat recognition sensors W221

30, opening rear fog lamps as spare brake lights with W222

31, increasing engine power MED177

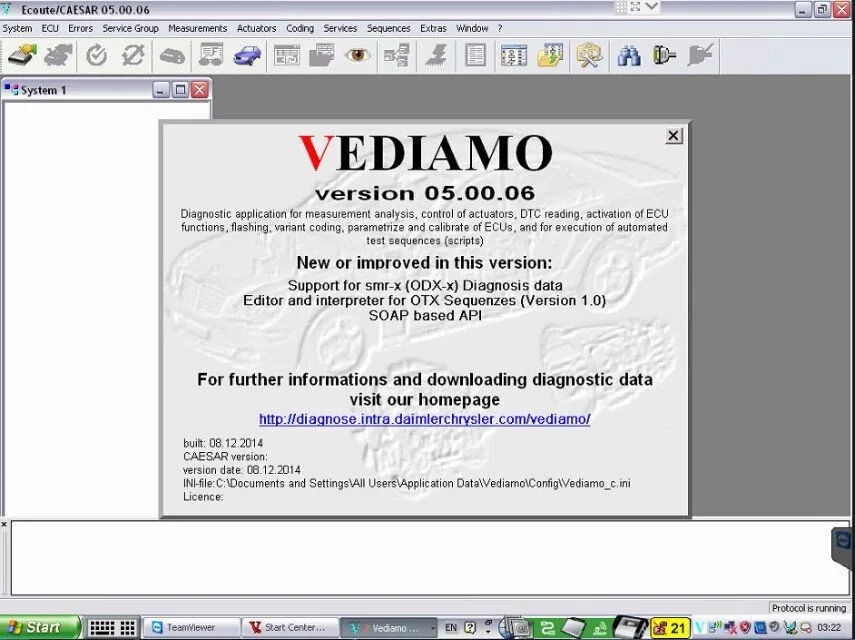

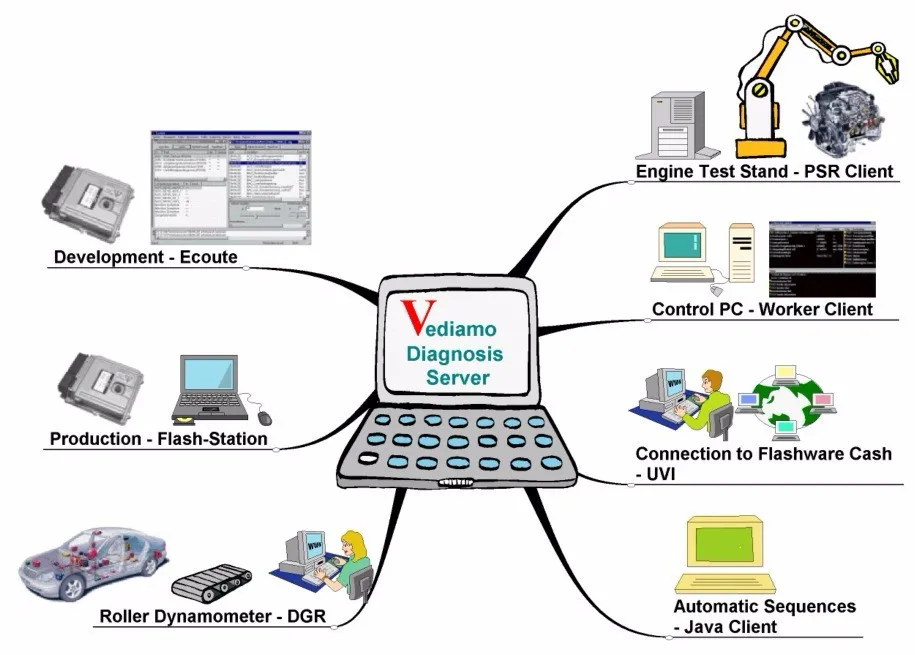

Vediamo Demo-Video

Mehr Video anzeigen

Vediamo SMART 451 Kodieren SAM 1

Vediamo  AHK E Klasse W212 1

Vediamo  AGR

Star Diagnose Vediamo MB Lambda OFF S Klasse W222

Vediamo 7GB database CBF &CFF
