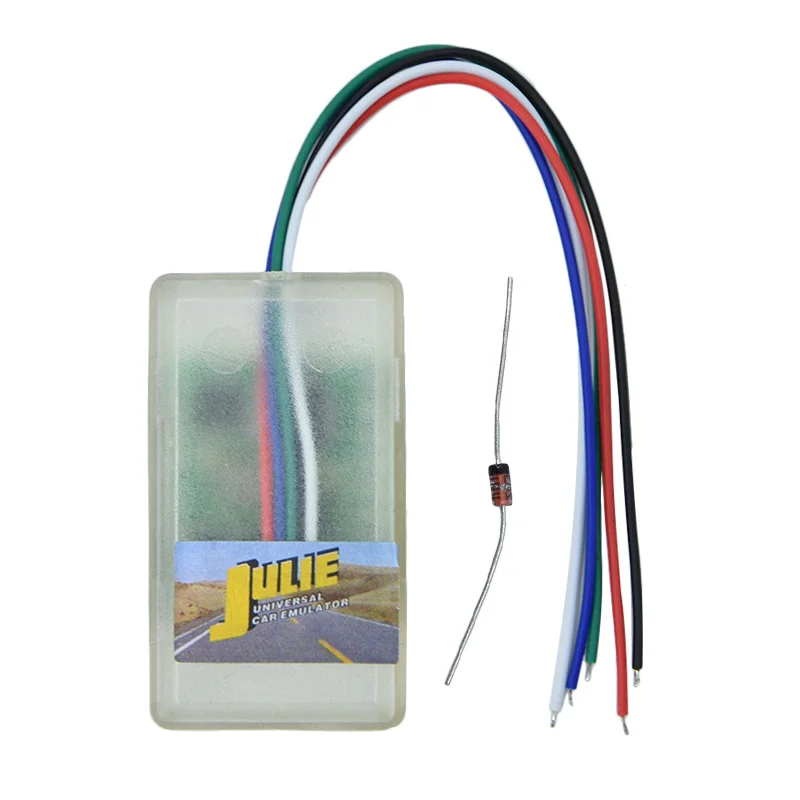

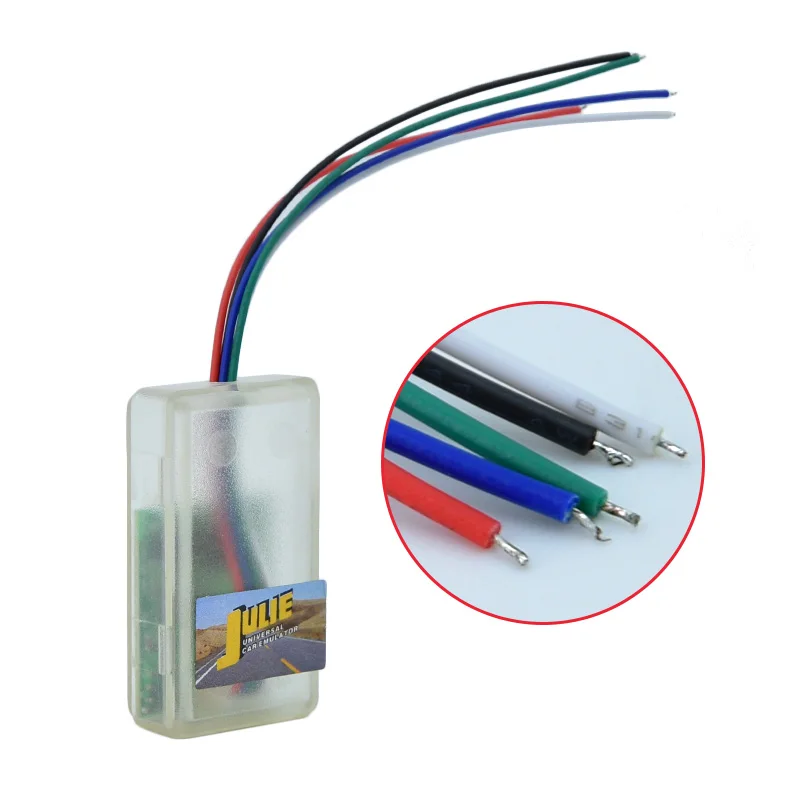

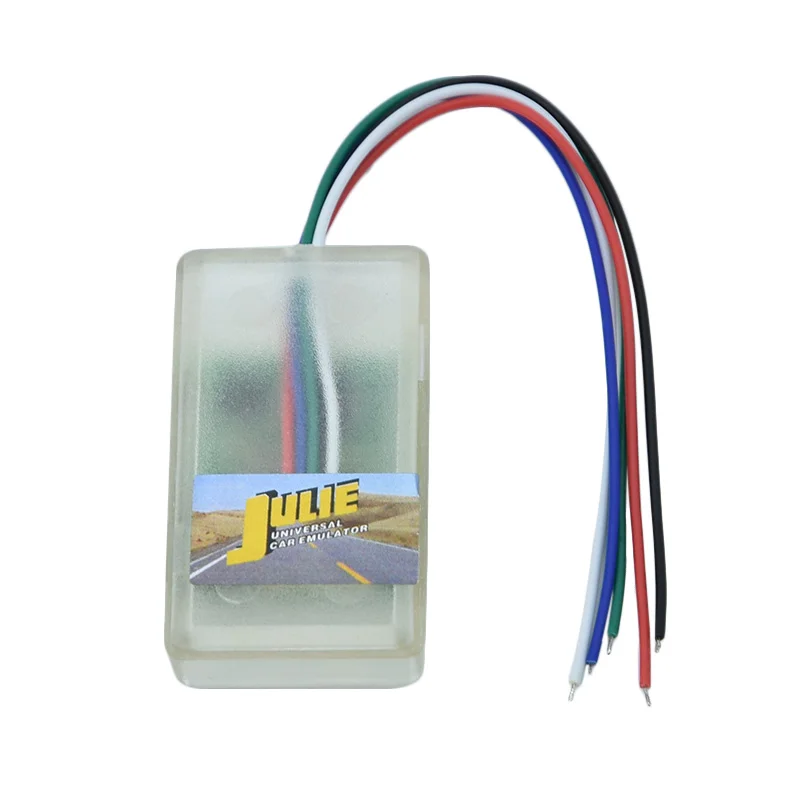

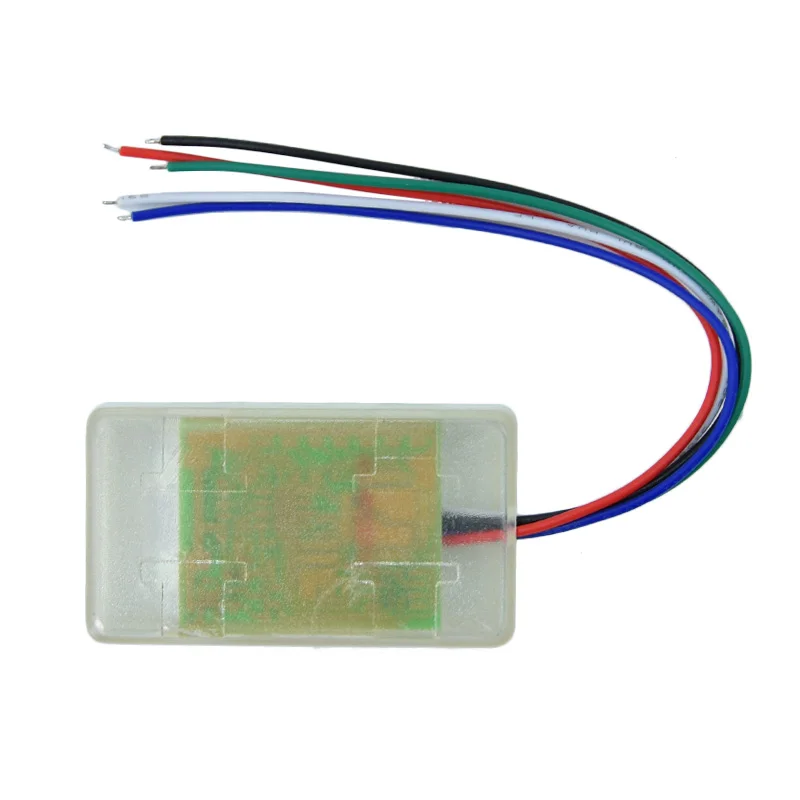

JULIE Emulator New Universal IMMO Emulator

Notice:

1.If use this Emulator for Can-Bus cars, you need solder an 120Ohm resistance on the PCB


Applicable to:

For Audi, for BMW, for Chrysler, for Citroen, for Daewoo, for Fiat, for Honda, for KIA, for Mazda, for Mercedes, for Mini Cooper, for Nissan, for Opel, for Peugeot, for Renault, for Seat, for Suzuki, for VW, for Yamaha

If use this Emulator for Can-Bus cars, you need solder an 120Ohm resistance on the PCB

JULIE Emulator New Universal IMMO Emulator Function:

1. For VW automatic immo OFF
Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.
Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6 to 15.

2. For VW automatic immo ON
Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.
Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6 to 15.

3. For VW without CAN
Audi, Seat, Skoda, Volkswagen
W1 and W2 systems up to around 2001. EDC15 and 5-socket LT28/LT35 ECUs - when the chassis numbers are not entered - even up to 2006. Diesel and petrol Ford cars with VW systems (the VW symbol is visible on the ECU).

4. For VW - Hitachi
Audi, Seat, Skoda, Volkswagen It is suitable for VAG group cars with Hitachi ECU to about 1997.

5. For VW - Valve Code
Audi, Seat, Skoda, Volkswagen To unlock the valve code on injection pump in vehicles VW 1.9 Diesel.

6. For VW EDC15 immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:
Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006, and even 2008 (except for Audi with coded pump)
Suitable for vehicles with 2-socket ECUs.

7. For VW EDC15 immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:
Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006, and even 2008 (except for Audi with coded pump)
Suitable for vehicles with 2-socket ECUs.

8. For VW EDC16 K-LINE immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:
Suitable for vehicles with 2-socket ECUs
0 281 011 XXX
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX
0 281 015 XXX
Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

9. For VW EDC16 K-LINE immo ON (single use) Audi, Seat, Skoda, Volkswagen Use:
Suitable for vehicles with 2-socket ECUs
0 281 011 XXX
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX
0 281 015 XXX
Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

10. For VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen
Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

11. For VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen
Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

12. For VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen
Use: Suitable for vehicles with 2-socket ECUs
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX

13. For VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen
Use: Suitable for vehicles with 2-socket ECUs
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX

14. For VW ME7 immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen
Use: Suitable for vehicles with ME7 Bo-sch ECUs
Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2
Production year: from 1999 to 2008

15. For VW ME7 immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen
Use: Suitable for vehicles with ME7 Bo-sch ECUs
Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2
Production year: from 1999 to 2008

16. For Chrysler
Use:
- For  Chrysler Voyager 2.5TD 1999-2001
- For  Dodge Caravan 2.5TD 1999-2001
- For  Jeep Cherokee 2.5TD 1999-2001

17. For  Citroen, For Peugeot with CAN
Use: EDC16 1.4 1.6 HDI with CAN
EDC15 HDI with CAN

18. For Daewoo 1
Use:
ECU with 2 white - red sockets
ECU with a blue socket

19.For Daewoo 2
Use:
Matiz SIEMENS, KEMSCO ECU
Tacuma KEMSCO ECU
Lanos 1.4 OHC hybrid ECU
Kalos SIRIUS D42 1.2 ECU
Chevrolet Aveo 4R ECU 1.2 8V

20. For Fiat without CAN
Use:
For Fiat, for Citroen, for Peugeot diesel without CAN 2-socket ECU
For Alfa, for Lancia, for Fiat 1.9 Jtd 2.4 Jtd 5-socket ECU
IAW49F for Fiat Bravo 1.6 16V
IAW 4AF Fiat Seicento, Panda 1.1 8V
For Lancia Kappa 2.0i 16V Turbo 0 261 203 792
For Lancia Kappa 2.0i 20V 0 261 203 670
For Lancia Kappa 2.4i 16V 0 261 203
For Lancia Kappa 3.0i 24V 0 261 203 482

21. For Fiat with CAN
ECU 5SF and 6F3

22. For Honda
Use: For Honda Accord, CRV, Civic and other (production year 1999-2002)

23. For Kia Sportage 2.0TD
For Kia Sportage 2.0 TD ECU ZEXEL immo with remote control

24. For Mercedes CR without CAN Infrared
Use: INFRARED IMMO
12-pin module + 2-pin CAN but only L connected (there is no CAN H) green and red LEDs flash in the mirror.
2.2 Diesel 1-socket Lucas
1.8 2.0 2.3 petrol hybrid SIEMENS ECU
2.0 petrol hybrid B0SCH ECU

25. For Mercedes CR1 with CAN WSP
Vito 2.2 Cdi 5-socket ECU
A-class 1.7 Cdi 5-socket ECU
EDC 1-socket ECU
2.5TD 2.9TD 3.0TD with mechanical and electronic ignition switch
B0sch ECU with HC11E9
E-class 4- socket Lucas with mechanical and electronic ignition switch
A-Class VDO MSM ECU
1.4 1.6 1.9 gasoline

26. For Mercedes CR1 with CAN EZS
2-socket (white) VDO ECU with 24c02 memory

27. For Mercedes CR1 with CAN infrared
2-socket (black) VDO ECU with X24C01 memory
2-socket (yellow) VDO ECU with X24C02 memory
2-socket Bos-ch ECU with B58 (24LC02) memory

28. For Mercedes CR2 with CAN WSP
Sprinter 2.2 Cdi 2.7 Cdi
ML 2.7 Cdi 5 plugs - it starts automatically
it also works in 2.7 and 3.2 with electronic ignition switch – it starts automatically.

29. For Mercedes ESL - steering wheel column lock emulator.
The emulator works with Mercedes electronic ignition switch in older models (W202, W208, W210)and allows to check newer models (W203, W209, W211, Vito 639).
The emulator can also be used to verify the original electronic ignition switch and steering column lock.

30. For Mercedes ESL2 - steering wheel column lock emulator.
The emulator works with Mercedes electronic ignition switch in W906 (Sprinter II, VW Crafter), W639, W211, W209, W202, W208, W210


Works with ignition switchs numbered:
A 906 545 64 08
639 545 05 08
208 545 00 08
208 545 01 08
208 545 02 08
208 545 03 08
210 545 00 08
210 545 01 08
210 545 02 08
210 545 03 08

31. For Nissan NATS 4 and 5
ECU from 2000 to 2002 - NATS 4 and 5 immo
2.2 2.7 diesel 5-socket ECU with 24C04 memory
1.5 gasoline Hitachi MEC with 93C46 and 93C56 memory
1.8 and 2.0 gasoline Hitachi MEC with 93C56 memory
Models: Almera, Almera Tino, Primera, Terrano

32. For Opel immo with HC05
1.2, 1.4 petrol 2-socket (black) ECU with Motorola HC11E20 processor
2.0, 2.2 and 2.5 petrol ECU with 24C02 eeprom memory

33. For Renault with CAN
SIRIUS 32 with CAN
SIRIUS 34 with CAN - NEW !!!
3-socket DELPHI with CAN - 95080 memory
3-socket BO-SCH EDC15 with CAN - 5P08C3 memory
EMS 3132 with CAN NEW !!!
EMS 3134 with CAN NEW !!!

34. For Renault without CAN
Syrius 32 without CAN
Syrius 34 1.4 1.6 2.0
EMS 3132
1.9 2.2 and 2.5 DCI without CAN
1.5 DCI without CAN
1.9 DTI 1-socket ECU
1.9 DTI 2-socket ECU
1.9 Diesel DCU3
2.8 TD
3.0 gasoline 1-socket ECU

35. For Renault without CAN old ECUs
Syrius 32 without CAN
Syrius 34 1.4 1.6 2.0
EMS 3132
1.9 2.2 and 2.5 DCI without CAN
1.5 DCI without CAN
1.9 DTI 1-socket ECU
1.9 DTI 2-socket ECU
1.9 Diesel DCU3
2.8 TD
3.0 gasoline 1-socket ECU

36. For Suzuki with X24C01 memory
Engine Control Module with memory X24C01

37. For Suzuki with OKI memory
Engine Control Module with memory OKI

38. For Suzuki 93C56 memory
Denso ECU with 93C56 memory and 29F200 flash.
The car must have 4C or 4D key.

39. TMS 374 - For Citroen, for Peugeot, for  Renault. for Citroen, for Peugeot, for Renault
Use: For Citroen, for  Peugeot - ECU with TMS374 processor
Sagem SL96
Magnetti Marelli 1AP20, 1AP40, 1AP41, 1AP43, 1AP80, 1AP81, 1AP83, 1AP9
for  Renault - ECU with TMS374 processor:
Siemens Fenix 5
Sagem Safir 1
Sagem Safir 2
Volvo - ECU with TMS374 processor
Siemens Fenix 5
(For Volvo V40/S40 / 1.8i / 1996-1999/ ECU S113727100C_V0LV0 /30850998-01)

40. for  Yamaha
Use: For Yamaha motorbikes and scooters from 2004 to 2010.
Example models: YZF R1, YZF R6, FZ6 N, FZ6 S, T-MAX, X-MAX, V-MAX.

Seat occupancy sensor programs

1. For BMW
Europe from 2007 to 2010 year without installed child seat.
Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93
For BMW from 1997 to 2007 without installed child seat
Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90
For BMW from 1997 to 2007 with installed child seat
Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90

2. For Fiat
For FIAT STILO without installed child seat.
For FIAT STILO with installed child seat.

3. Mercedes
Without installed child seat:
Models: E-class W211 (2002-2004), S-class W220 (2003-2005), A-class W168, C-class W202, Vito W638, ML, E-class W210, Vito W639, ML W163, A-class W168, S-class W220, C-class W203, CLK W209, Vaneo, E-class W210
With installed child seat: E-class W211 (2002-2004), S-class W220 (2003-2005), A-class W168, C-class, W202, Vito W638, ML, E-class W210, E-class W210, Vito W639, ML W163, A-class W168, S-class W220, C-class W203, CLK W209, Vaneo
For Mercedes from 2004 to 2011 year
Models: E-class W211 2004 do 2007 Temic, SL W230 modele z 2004, SLK W171 2004 do 2011
Mercedes from 2003 to 2010 year
Models: E-class W211 from 2003 to 2007, Bo-sch contoller, C-class W203 from 2006 to 2007, CLS W219 from 2005 to 2010, CLK W209 from 2006 to 2009, S-class W220 from 2002 to 2005, S-class W221 year 2006 only

4. Mini Cooper
Mini Cooper 2002-2005 year without installed child seat.
Mini Cooper 2002-2005 year with installed child seat.

5. For Mazda
Without installed child seat.:
Models: Premacy, MX-5, 626, 323, 6 With installed child seat:
Models: Premacy, MX-5, 626, 323, 6

Tacho programs
1. For Audi Q7 and A6
2. For Citroen C4 Picasso
3. EMF Display
4. For Renault Kangoo 3 Display
5. For Renault Scenc II, Espace IV Tacho
6. For Renault Scenic Full
7. For Renault Scenic III + Navi
8. For VW Passat B6


Package Including:

1pc x JULIE Emulator New Universal IMMO Emulator
