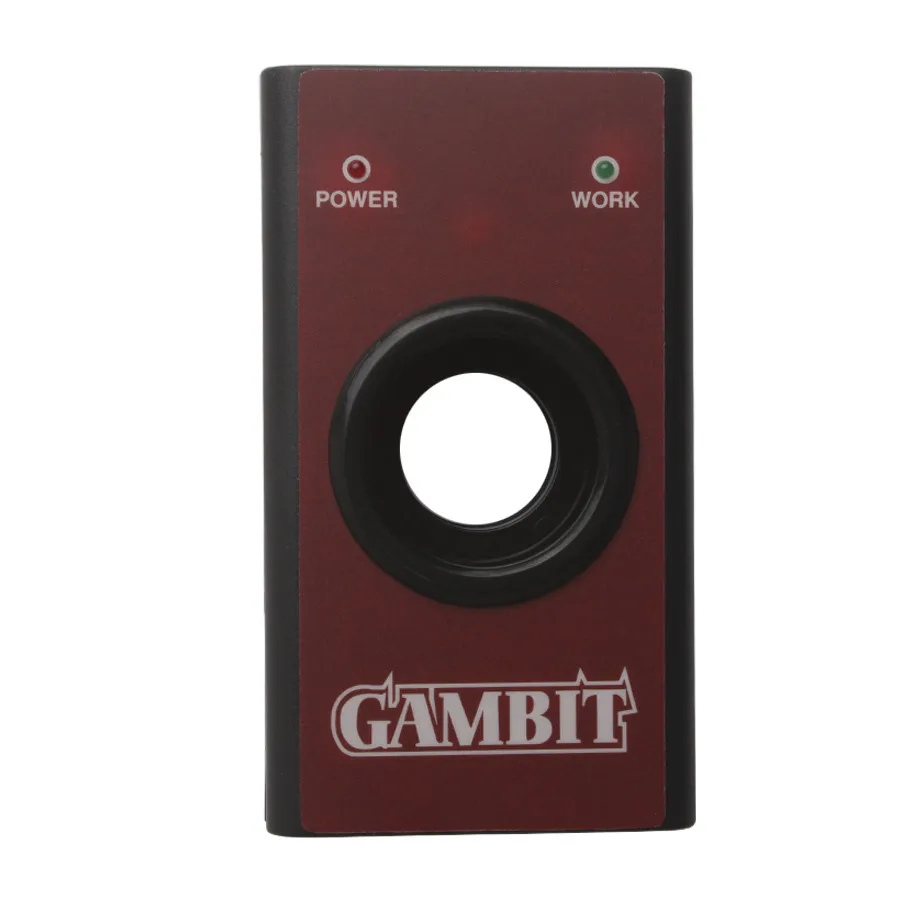

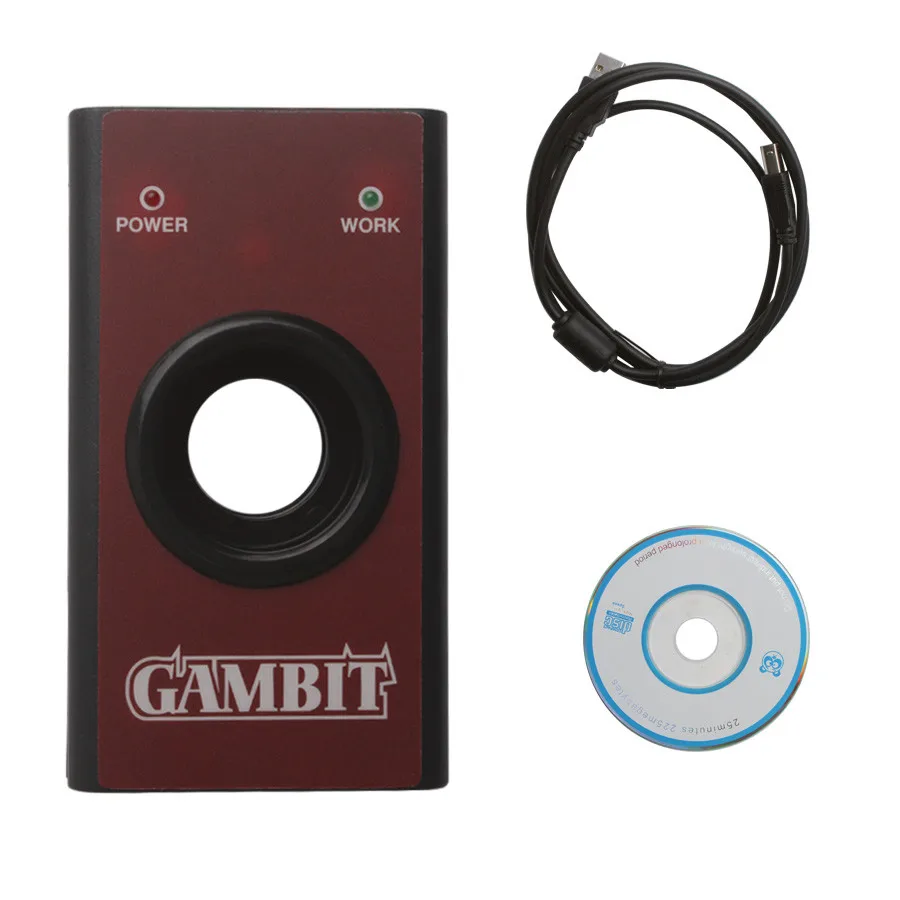

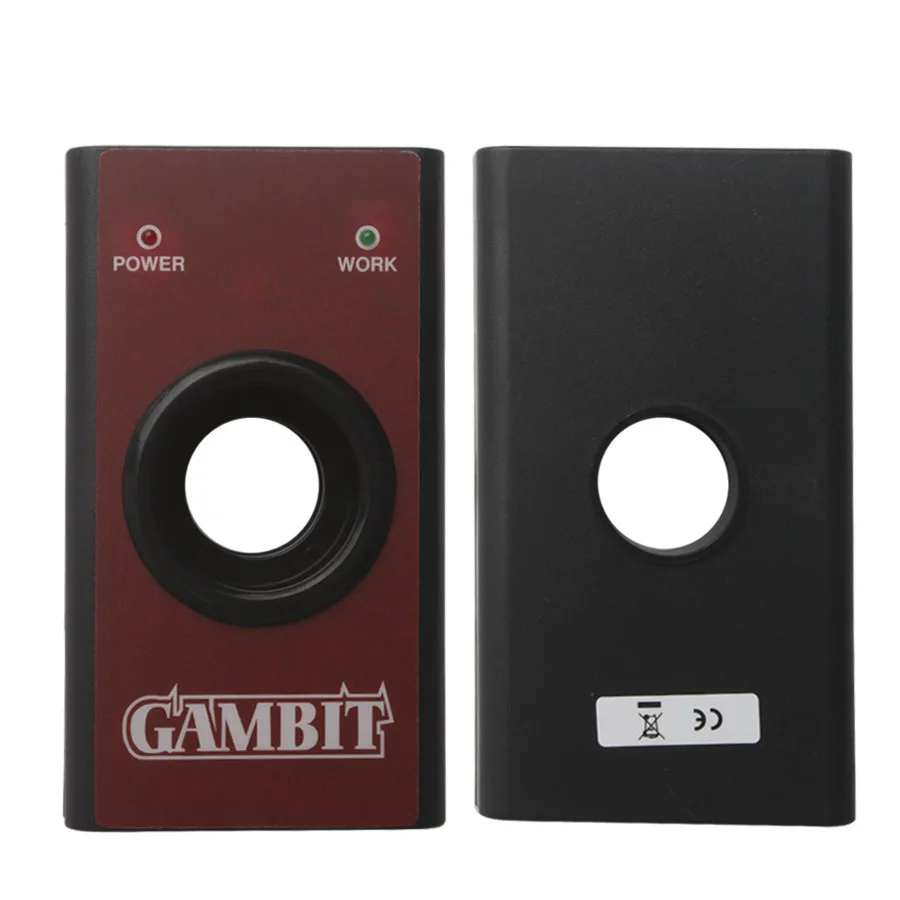

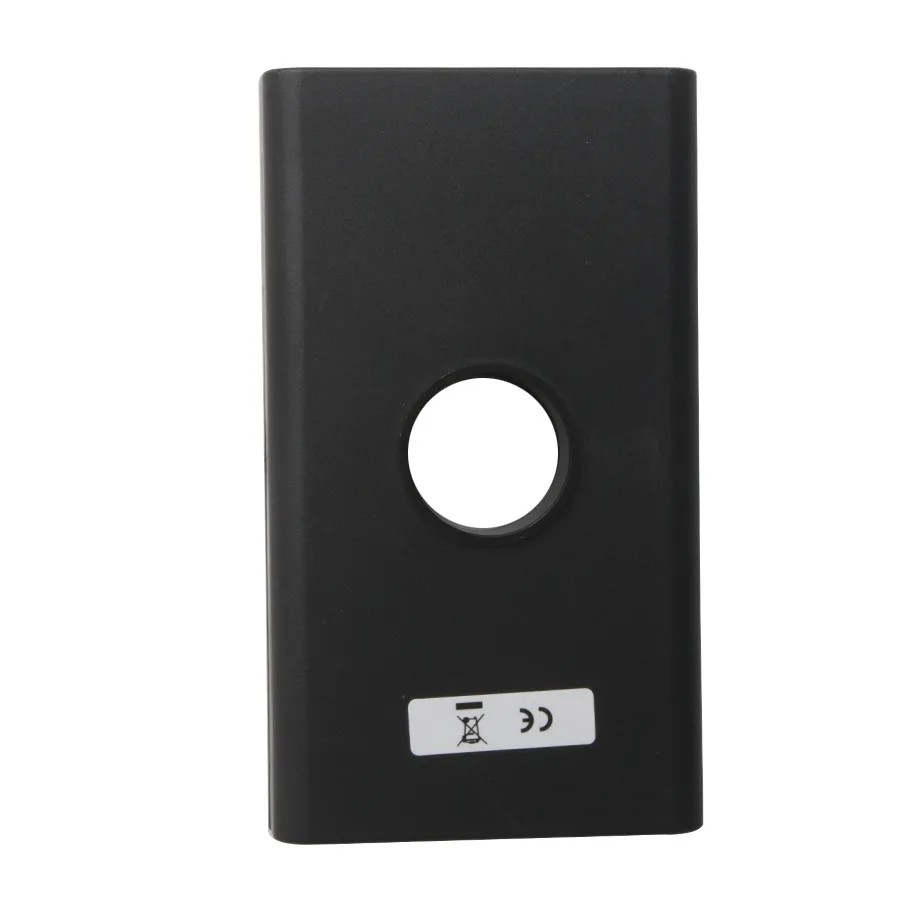

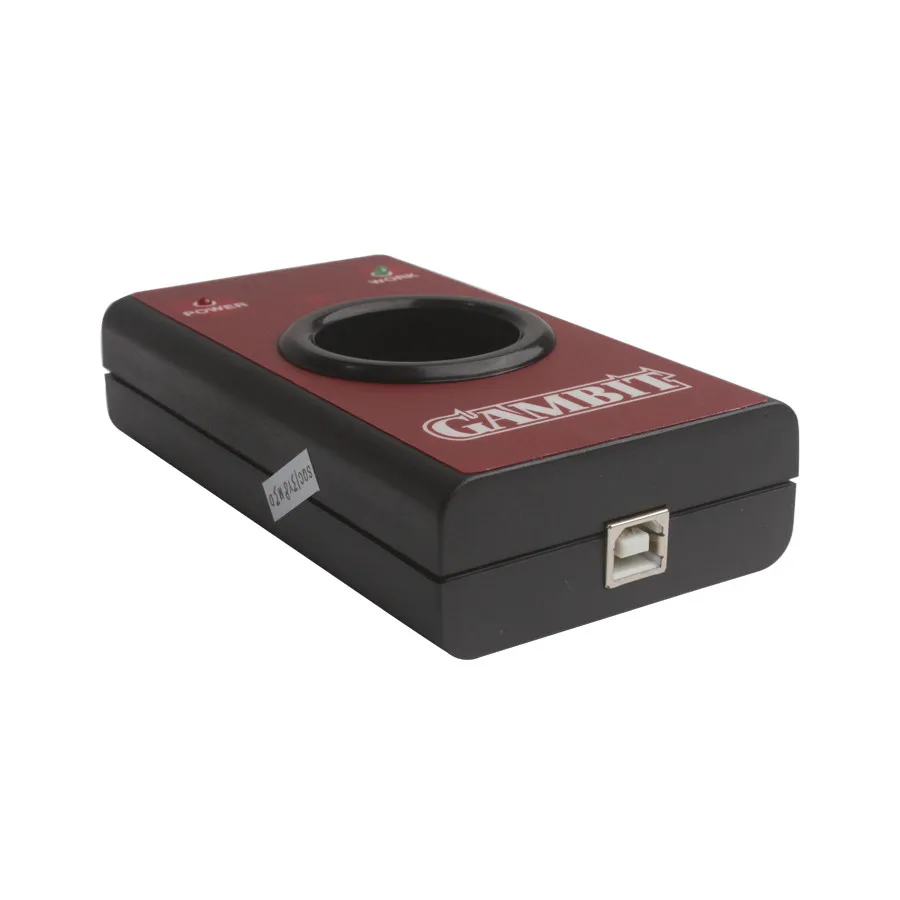

Gambit programmer CAR KEY MASTER II

Description
Software Version:2.0

CAR KEY MASTER II (Gambit programmer)is intended for RFID ( transponders) programming.it is mainly produced for programming RFID transponders and generating RFID transponders from the immobilizer dump/eeprom of the car, in order to be able to start the vehicle.
Gambit programmer works with PCF7935, PCF 7936 and T5 transponders which are not precoded and are completely blank.


Support:

1.transponder type Read/ Write

PCF7930 YES /YES
PCF7931 YES /NO
PCF7935 YES /YES
PCF7936 YES /YES Note 2
EML YES Y/ES
MEGAMOS YES /NO Note 1,3,5
TEMIC 11 YES /NO Note 1,5
TEMIC 12 YES /NO Note 1,5
T5 Note 4 /YES

Note 1. Transponder is OTP (One Time Programable).
Note 2. Password Mode.
Note 3. Transponder can be emulated on PCF7935.
Note 4. Transponder can be read after its configuration (as Temic11-12, Megamos)
Note 5. Transponder can be copied (cloned) into T5 transponder

2.Key Makers

for Alfa Romeo 1996 with 93C46 eeprom v.1 (Compatible also for Alfa Romeo 33)
for Alfa Romeo 1999 with 93C46 eeprom v.2
for Audi immobox 4A0953234 eeprom 93C46
 EWS1 immo
EWS2 immo
 EWS3 immo
ALL IMMO MODELS:
EWS1 immo
EWS2 immo
EWS3 immo
EWS4 immo
CAS (CAS1)
CAS2
CAS3
for Citroen Evasion with eeprom 93C66
for Dachia Supernova Sagem immobilizer
for Daewoo Nexia
for Daewoo Espero
for Fiat Brava, MC68HC908AZ32
for Fiat Bravo, eeprom 93C46.
for Fiat Bravo, MC68HC705E6
for Fiat Cinquecento, eeprom 93C46
for Fiat Ducato, eeprom 93C46.
for Fiat Palio, MC68HC705E6
for Fiat Punto eeprom 93C46
for Fiat Scudo, motorola
for Ford Galaxy box-case immo TMS-based
for Ford Galaxy box-case immo Motorola-based
for Ford Probe 96-97
for Shuttle, eeprom 93C46
FOR Civic, eeprom 93C46
FOR Civic, eeprom 93C46 2003
CRV eeprom 93C46
for Mercedes Benz set for cars with transponder-type key.
Compatible to 129, 140, 210, S300 S320, S420, S500, E290, Vaneo, A-160, etc.
Supported immobilizers:
for motorola maskset 0D53J
for motorola maskset 0D69J
for motorola maskset 0D66J
for Mercedes ML-seria AAM-based
for Mercedes ML-seria EAM-based
for Mercedes Actros (93C86)
for Mercedes Actros (93C66)
for Mercedes Atego (93C86)
for Mercedes Atego (93C66)
for Mercedes Actros
for Mercedes Sprinter
for Mercedes Vito
for Mitsubishi Carisma witth 93C46 eeprom
for Nissan NATS-2 immo
for Nissan NATS-4 immo
for Opel Motorola based
for Opel TMS based
for Opel Movano 2000, eeprom 93C46
for Opel Frontera, eeprom 93C46
for Peugeot motorcycle Spedfight2 Motorola MC68HC05B8 based
for Peugeot 306 (eeprom M95040)
for Peugeot 406 (Valeo, eeprom 93C46)
for Peugeot Boxer (eeprom 93C46)
for Peugeot Partner (eeprom 93C46)
for Peugeot Squab
for Renault Clio (Sagem immobilizer, eeprom 93C46)
for Renault Kangoo up to 2002 Sagem immo
for Renault Laguna 1998, eeprom 93C46
for Renault Master, eeprom 93C46
for Renault Laguna 1998 Valeo immo
for Rover 75
for Seat Alhambra (7M0 953 257 F) for Motorola maskset 3D33J
for Subaru Legacy. for Motorola maskset 0F10V
for Subaru Impreza. for Motorola maskset 3D33J
for Subaru Outback. for Motorola
for Volvo 850 (eeprom 93C46)
for Volvo V70 (eeprom 93C56)
for Volvo V70 (eeprom 93C66)
for VW box-case immo for Motorola MC68HC05B6 based
for VW box-case immo TMS-based
for VW box-case immo 6x0 953 257

3.Image dump generators

Type 44
for Audi A8 2003-2006
for VW Touareg
for VW Phaeton
E60
E64
E65
 E87
for Porsche Cayenne
for Citroen Xsara Picasso 2000-2004
for Citroen C3 2004
for Peugeot 307 2004
for Opel fixed code
for Mitsubishi (PCF7936)

4.Pin calculator

EDC16 (eeprom 95320 / 25C320) and for BoschMotronic (eeprom ST95P08)
List of car equipped with these ECUs:
for AUDI A3, A4, A6, A8
for VW Golf 4, Touran, Touareg, Phaeton, Caddy
for SKODA Octavia II
for SEAT Leon, Toledo
for Honda Civic, eeprom 93C46
for Honda Civic, eeprom 93C46 2003
for Honda CRV eeprom 93C46
for Mercedes Benz set for cars with transponder-type key.
Compatible to 129, 140, 210, S300 S320, S420, S500, E290, Vaneo, A-160, etc.
Supported immobilizers:
for motorola maskset 0D53J
for motorola maskset 0D69J
for motorola maskset 0D66J
for Mercedes ML-seria AAM-based
for Mercedes ML-seria EAM-based
for Mercedes Actros (93C86)
for Mercedes Actros (93C66)
for Mercedes Atego (93C86)
for Mercedes Atego (93C66)
for Mercedes Actros
for Mercedes Sprinter
for Mercedes Vito
for Mitsubishi Carisma witth 93C46 eeprom
for Nissan NATS-2 immo
for Nissan NATS-4 immo
for Opel Motorola based
for Opel TMS based
for Opel Movano 2000, eeprom 93C46
for Opel Frontera, eeprom 93C46
for Peugeot motorcycle Spedfight2 for Motorola MC68HC05B8 based
for Peugeot 306 (eeprom M95040)
for Peugeot 406 (Valeo, eeprom 93C46)
for Peugeot Boxer (eeprom 93C46)
for Peugeot Partner (eeprom 93C46)
for Peugeot Squab
for Renault Clio (Sagem immobilizer, eeprom 93C46)
for Renault Kangoo up to 2002 Sagem immo
for Renault Laguna 1998, eeprom 93C46
for Renault Master, eeprom 93C46
for Renault Laguna 1998 Valeo immo
for Rover 75
for Seat Alhambra (7M0 953 257 F) for Motorola maskset 3D33J
for Subaru Legacy. for Motorola maskset 0F10V
for Subaru Impreza. for Motorola maskset 3D33J
for Subaru Outback. for Motorola
for Volvo 850 (eeprom 93C46)
for Volvo V70 (eeprom 93C56)
for Volvo V70 (eeprom 93C66)
for VW box-case immo Motorola MC68HC05B6 based
for VW box-case immo TMS-based
for VW box-case immo 6x0 953 257

5.Image dump generators

Type 44
for Audi A8 2003-2006
for VW Touareg
for VW Phaeton
 E60
 E64
 E65
 E87
for Porsche Cayenne
for Citroen Xsara Picasso 2000-2004
for Citroen C3 2004
for Peugeot 307 2004
for Opel fixed code
for Mitsubishi (PCF7936)

6.Pin calculator

EDC16 (eeprom 95320 / 25C320) and for BoschMotronic (eeprom ST95P08)
List of car equipped with these ECUs:
for AUDI A3, A4, A6, A8
for VW Golf 4, Touran, Touareg, Phaeton, Caddy
for SKODA Octavia II
for SEAT Leon, Toledo
