Top Professional VCM II For LandRover Diagnostics Tool Scanner Latest Version V143 VCM2 JLR for JLR VCM 2 IDS OBD2 Scanner VCMII

1.What does the VCM2 for Land Rover do?

TheVCM2 for Land Roverconnects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a

USB cable for use with SDD.  Once the J2534 DLL filesare loaded, this product will allow normal operation with the

JLR SDD diagnostic tool.

The device is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications.

Only SCP communications are not possible with this device.

2.How does the VCM2 for Land Rover operate in J2534 mode?

The VCM2 for Land Rover device is simple and easy to use.

l Download the latest J2534 DLL software files from the Diagnostic Associates web site www.diagnostic-associates.com/download.htm and install these on the SDD laptop.

l Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).

l Connect the 12ft USB cable to the J2534 device and the other end to the SDD laptop.

l The red vehicle power (PWR) LED will illuminate to show that the device is powered.

l During communication with the vehicle the status (STS) LED will flash green.

l The device interacts with the SDD diagnostic tool in the same way as the existing VCM.

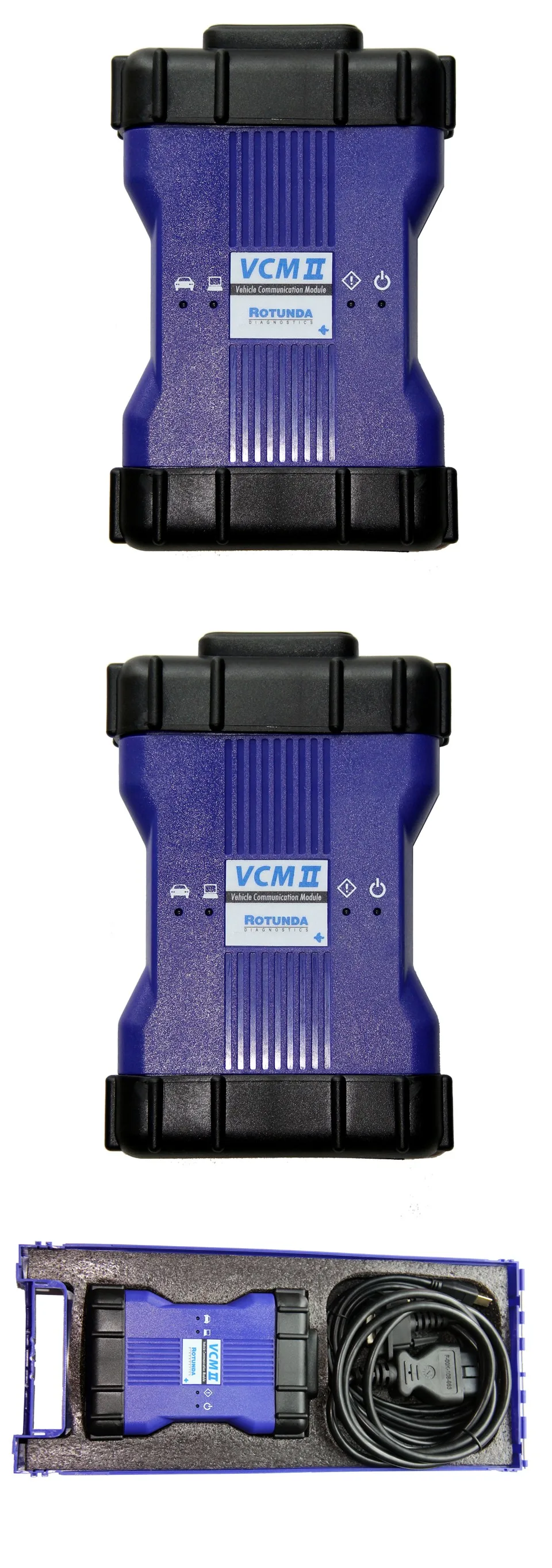

VCM2 for Land Rover

Overview

u JLR Approved device

u Replacement for JLR SDD VCM

u Covers CAN, & ISO9141 vehicle networks

u Most cost effective for Land Rover pass-thru

VCI device

u Best suited for current and future vehicles

u 12ft USB cable as standard included

u Easy to update for J2534 new functionality

For Jaguar &For Land Rover Vehicle Coverage

JLR Vehicles

Supported?

Defender

Yes

Discovery /LR3/LR4

Yes

For Range Rover Sport & for New Range Rover Sport

Yes

For Range Rover

Yes*

For New Range Rover

Yes

Freelander /LR2

Yes

Evoque

Yes

XJ – X300/X308

No

XJ - X350

No

XJ - X351

Yes

XJS

No

XK – X100

No

XK - X150

Yes

XF

Yes

S-Type

No

X-Type

No

F-Type

Yes

(Yes) – Vehicle line fully supported:

(Yes*) - Vehicle line fully supported apart from viewing Data logger signals from both ECM and TCM

modules simultaneously on 2006MY variants :

(No) - Vehicle Line Not supported

* VCM2 interface ×1

* OBD2 cable ×1

* USB cable ×1

* CD-DVD x1

* Plastic box ×1
