Gds Vci V19 Diagnostic Tool for Kia Hyunda i OBD2 Scanner Interface Firmware Version V2.02

GDS VCI for KIA & HYUNDA I Diagnostic Tool Features:

1. Software version: Hyunda i V19, Kia V12; Firmware version: V2.02.

2. Support Flight Record Function, trigger module pacakge included.

3. GDS VCI Vehicles Coverage: 1996-2015, some newer 12V petrol car models for Hyunda i Kia.

4. Package come without USB Dongle, software installation more convenient.

GDS VCI support Language: English Only.

GDS VCI Update method: by CD.



Tips on using GDS VCI Interface:

1. Operating System: Windows XP/Windows 7.

2. Kia and Hyunda i software can not be installed on the same computer.Before install Kia software, it must install hyunda i master dvd,  otherwise it will cause the softwre install not success

3. Never try to update the software, otherwise the circuit board will be burned, need return it back for repair,and you will pay all the maintenance cost and shipping cost back and force, because such damage is not free in the warranty policy.

4. Mainly work on work on Hyunda i and Kia in North America vehicles models,  please use OBD software for Hyunda i Kia.

5. If you need cost-effective key programmer for Hyunda i and Kia, you can choose Zed Bull Key Programmer.

6. The software inside package mainly support America vehicles, if you need to work on European Vehicles, please choose Newest GDS VCI Software for EU Hyunda i & KIA Stored in 500G SATA Format HDD.

GDS VCI Interface Description:

GDS VCI Diagnostic Tool is an advanced service system that provides comprehensive coverage for all Hyunda i vehicles including all Hybrid cars. GDS provides complete diagnostics, analysis and reprogramming capabilities as well as a huge library of technical, service and repair information. And now buy it. you can get NEW kia GDS software free.

GDS VCI Diagnostic Tool for KIA Hyunda i Features:

1) Completely Integrated Diagnostic System with User Specific information & settings

2) Complete Technical Service Information

3) Comprehensive & Customized Diagnostic Solution

4) Guided Troubleshooting Procedures

5) Mobile Data-recording Function

6) Real-time Software Management

Trigger Module (Flight Record) (optional)

Intensified recording function of vehicle conditions at idling or driving

Recorded data VCI can be reviewed and analyzed precisely and the terminal

Exact Analysis of data trend

Data storing in PC and sharing for remote control diagnosis and further diagnosis

Actuator Driving

Sample Operation and multi-record with large memory up to PC HD memory

Easy to use and fast procedure

Packing Including:

1pc x VCI Interface

1pc x OBD2 main cable

1pc x 20 Pin Adapter

1pc x 12 Pin DLC Cable

1pc x 10-8-2 Pin Cable

1pc x 6P DC Jack

1pc x AC-DC Power adapter

1pc x USB Cable

1pc x Trigger Module (Fright Record Function Supported)

1pc x Software CD

FAQs:

Q:Does this software is same as original ?which year is the limited?

A:Our function is as same as original, but unit is copy one,right now,it can do the car around 2015.

Q:what's difference of the red color version and blue color version for GDS VCI?

A:Device and quality are almost the same, except the appearance of different colors.

Q:Can your GDS VCI install on WIN7 system?

A:Sorry, right now is only on XP.

Q:Can your GDS VCI support key program?

A:Our engineer said it can, but depends on customer skill.we cannot help you by remote.

Q: Does it support wireless function?

A: No, it do not support wireless function.

How to connect the GDS VCI with the PC and the Vehicle before testing?

Connect the module to the cigar lighter or vehicle 12V power point.

The module should be secured in a safe location when operating the vehicle to avoid interference with other vehicle equipment.

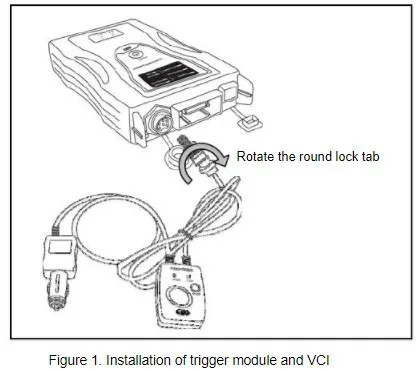

1. installation of moudulE and vci
2. connect cigar connector to externsion cable and cigar light socket
3. connection for battery externsion cable
4. installation of module in a vehicle

How to install Hyunda i GDS software V19 ?

Open Computer->Removable disk (F:)->GDS VCI EN

Run DAEMON Tools Lite application

Windows security alert: Allow access

Install DAEMON Tools Lite

Next to install DAEMON Tools Lite 4.49.4.0356

Accept the agreement

Free licence, Next

Next

Install

Installing DAEMON Tools Lite…

Pop-up: installing device driver software

Install DT gadget? Yes

Finish installing DAEMON Tools Lite on your computer

Windows security alert: Allow access

Close the IE explore if it automatically opens

Install GDS software

Go to Computer->Removable disk (F:)->GDS VCI EN->HYUNDA I MASTER

Open Hyunda i GDS Master ISO file

Autoplay: open folder to view files

Then open the setup application

Preparing setup…

Input the dealer ID

Next to install GDS

Next

Tick on MS PP Viewer, MS World Viewer, MS Excel Viewer, Adobe Acrobat Reader

Next

Power point viewer will be installed. OK

Yes to install

Installing

Power point viewer 2003 setup is completely installed! OK



Word viewer will be installed. OK

Installing….

Accept the licence agreement, Next

Install

Installing…

Word viewer 2003 setup is completely installed! OK



Excel viewer will be installed. OK

Installing….

Accept the licence agreement, Next

Install

Installing…

Excel viewer 2003 setup is completely installed! OK



Adobe Acrobat will be installed. OK

Next

Install

Installing…

Finish installing Adobe Acrobat 9



Click on Install to begin the GDS installation

Installing….

Select PC type: Toughbook or Common Laptop

Next

Accept the licence terms, Install

Installing….

Finish installing Microsoft visual c++ 2008 redistributable

Installing GDS usb vci driver….

Windows security: install this driver software anyway

Installing GDS usb vci driver….

Windows security: install this driver software anyway

Installing GDS vim usb driver….

Windows security: install this driver software anyway

Installing GDS vim usb driver….

Installing GDS….

Finish installing GDS

Installing Shield….

Install GDS HMA Update Pack

Go to Computer->Removable disk (F:)->GDS VCI EN->HYUNDA-I UPDATE 1

Open Hyunda i GDS 19 Disc 1 ISO file

Open folder to view files

Open the setup application

Preparing setup…

Input the dealer ID, Next

Next to install GDS HMA Update Pack

Install

Installing…

Finish installing GDS HMA Update Pack

Installing Shield….



Then go to folder HYUNDA-I UPDATE 2

Open Hyunda i GDS v19 Disc 2, then do the same as Hyunda i GDS 19 Disc 1

Installing GDS HMA Contents Update Pack…

Finish installation of GDS HMA Contents Update Pack

Installing Shield….

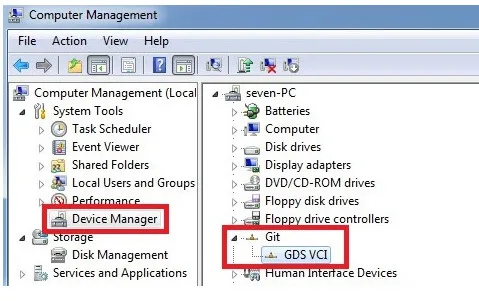

Open Computer management

Select Device manager->GIT->GDS VCI

Open GDS application on Desktop

Hyunda i GDS VCI software V19 is installed successfully and ready for use!
