Full Chip For Volvo Vida Dice 2015A Add Cars To 2019 OBD2 Auto Diagnostic Tool Dice Pro Vida Dice Green Board

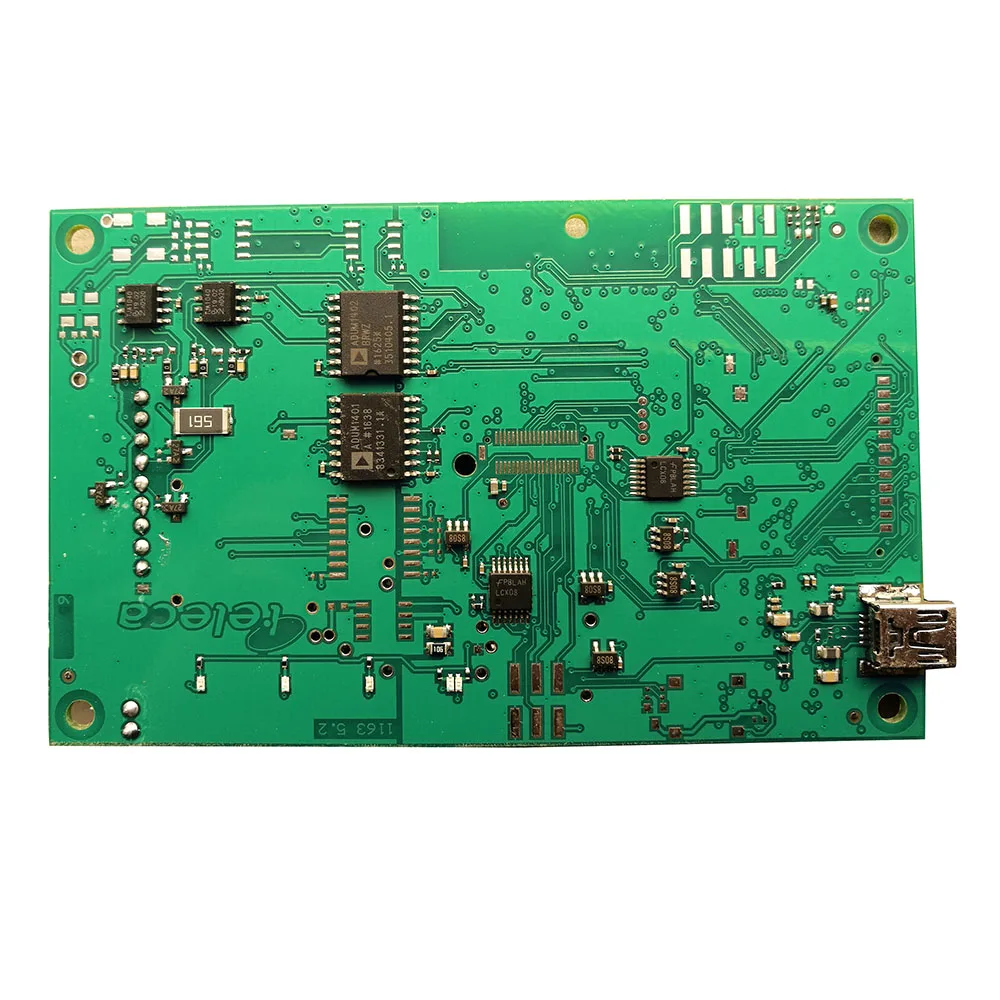

The Green PCB Board & Full Chip For VOLVO VIDA DICE:

There are 3 options in my link:

1. Vida dice+2014D softare

2. We have newest software 2015A for volvo vida dice , 2015A add some car models untill 2018 / 2019.

We will send it to you by CD with Dongle. And we will give you the software link if the CD is broken. But you have to use the software with dongle. Or it can't be used.

It supports multi-languages:

Italiano, English, French, Portuguese, Swedish, Japanese, Korean, Dutch, Russian, Turkish, Thai, Chinese

PC system must be win7 ( 32bit is best ) and IE9 ( Before Installing software, must install IE9 firstly )

3. VIDA DICE+2015A software

GOOD NEWS:

1. we have EWD 2014D + VDASH as free gift , VDASH is a software which can change car language and tune for volvo, Pls contact me to get download link after received parcel

2. We have VIDA 2014D Multi1 Version, it support 12 languages :

German,finnish,italian,dutch,turkish,Spanish,French,Swedish,Portuguese,Russian,English(UK),English(us)

If you want 2014D Multi1 with 12 languages,   Pls contact me to get link to download after received parcel.

(The CD is 2014D Multi3 version, will not support German, finnish, Dutch, Turkish Languages) .

Other Chinese seller VIDA 2014D are all 2014D Multi3 version, Not Including German, finnish, Dutch,Turkish Languages !

Please Note:

1. If your CD was broken or can't readable, please contact us for software download link. DO NOT OPEN DISPUTE OR GIVE NEGATIVE FEEDBACK!

2. Recommended PC system: Windows 7 Pro (32Bit Is Better) system with Internet Explorer IE9 or above and NET.Framework 3.5. Do not support XP or Win7 Home system!

3. Before install the software, please remeber to shut down your anti-virus software, Or it will be no bad effect on your laptop !

4. Our Vida Dice scan tool is used together with VIDA all-in-one to communicate with the vehicle. WE DO NOT SELL STUPID VIDA DICE which resvised from J2534, because that do NOT supports full functions and update.

5. Remember to run the file EnableIEHostingx86.reg for 32bit systems or EnableIEHostingx64.reg for 64 bit system. The files can be found in the folder INSTALL->Utils. Just run these file as administrator So " Communication Tool " ( DICE CONFIGURATION ) will be OK !

6. Our Vida Dice do not support Bluetooth function. it communicate via USB. The User Name is: 1 or admin

7. Software must install on C Drive with 40G spare space.

8. We will offer Best After-Sale service for you as we have much professional experience for solving the problems.

Hottest Full Chip For Volvo Vida Dice 2014D Diagnostic Tool Multi-Language For Volvo Dice Pro Vida Dice Green Board Free Ship

Features:

1.  Supported Languages:

  ---2015A:（send CD + dongle）

 Italian，English，French，Portuguese，Swedish，Japanese，Korean，Dutch，Russian，Turkish，Thai，Chinese



---2014D Multi1: ( Send link to download )

German,finnish,italian,dutch,turkish,Spainish,French,Swedish,Portuguese,Russian,English(UK),English(us)

---2014D Multi3: ( Send CD )

English,Spanish,French, Portuguese, Swedish, Japanese, Korea, Thai, Russian, Chinese

2.Supported Cars:

2014D : For Volvo 1999-2016

2015A:  For Volvo 1999-2019



3. Firmware: Full Chip.

   Software: Newest 2014D/2015A

4. Support System : Win XP & Professional Win7 32bit or 64bit ( Except Home version)

5. Support For Vol-vo cars from 1999-2016, but  can not support new XC90 Doip

6. Can do control modules, SRS, general safety, brakes, airbag, engine as well as service and maintenance.

For Volvo Vida Dice (DIagnostic Communication Equipment) is a tool that is used together with VIDA All-in-one sw to diagnose and troubleshoot for Volvo vehicles from and including model year 1999. This is the latest for Volvo tool to replace the well-known VCT2000 device.

For Volvo Vida Dice is connected to the vehicle's OBD diagnostic socket. When connecting to the vehicle, DICE is powered as long as the battery is charged. Device has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.

For Volvo Vida Dice is equipped with four status LEDs that indicate the status of the sw, the USB  communication and the interface to the car. Also there is a DC input where a battery cable or adaptor (12V) can be connected, it is used when upgrading and troubleshooting the DICE device.

Features of vida dice diagnostic:

Fault-tracing

• General diagnostics and tests

• Diagnostic trouble codes and associated procedures

• Symptom-related diagnostic procedures

• Wiring diagrams

Repair

• General safety information

• General information

• Component location

• Service programs

• Removal, replacement and installation

• Overhaul instructions

• Cleaning, Inspection and Adjustment

• Installation instructions, accessories

Parts catalogue

Product specification

• Visual identification

• Design and function

• Specifications, electrical/electronic

• Specifications, mechanical

• Mechanical schematics and diagrams

• Gas, Vacuum and Fluids Schematics/Diagrams

Bulletins

• General Information Bulletins

• Manual Update Bulletins

• Product Fix/Special Tool Bulletins

• Recall/Service Campaign Bulletins

• Emission Recall Campaign Bulletins

• Service Manager Bulletins

• Parts/Accessories Bulletins

• WB, mechanical tools

Requirement on Computer for vida dice diagnostic:

It must be windows 7 Professional operating system

It need to be Internet Explorer 9

Computer memory need over 3GRAM

C:// must have 40GB space

SW must install on C://

It must be NTFS format

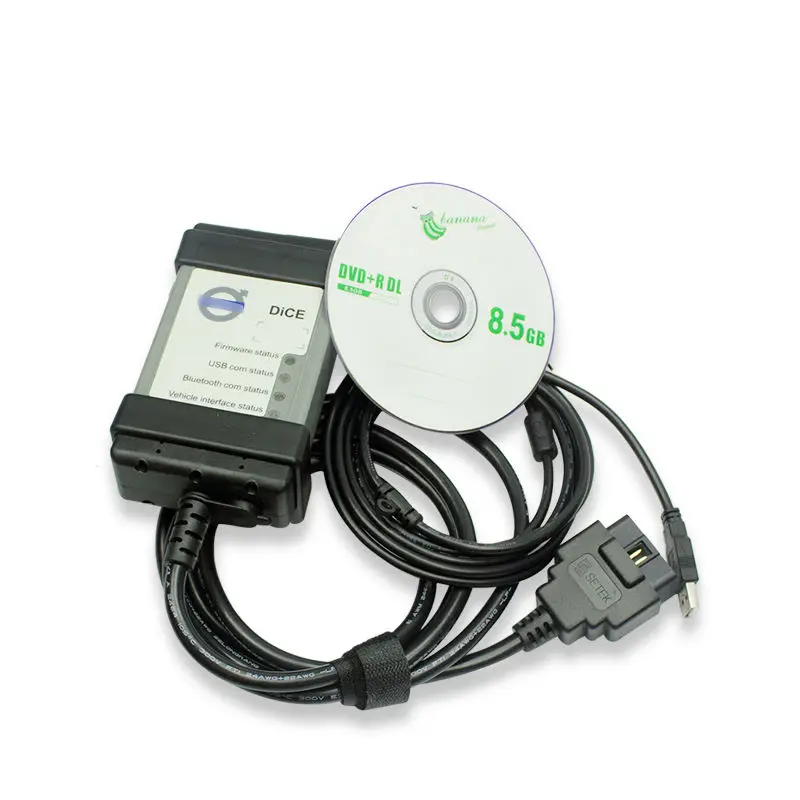

Packing List :

DICE device

OBD-II cable

USB A to MINI USB angled cable

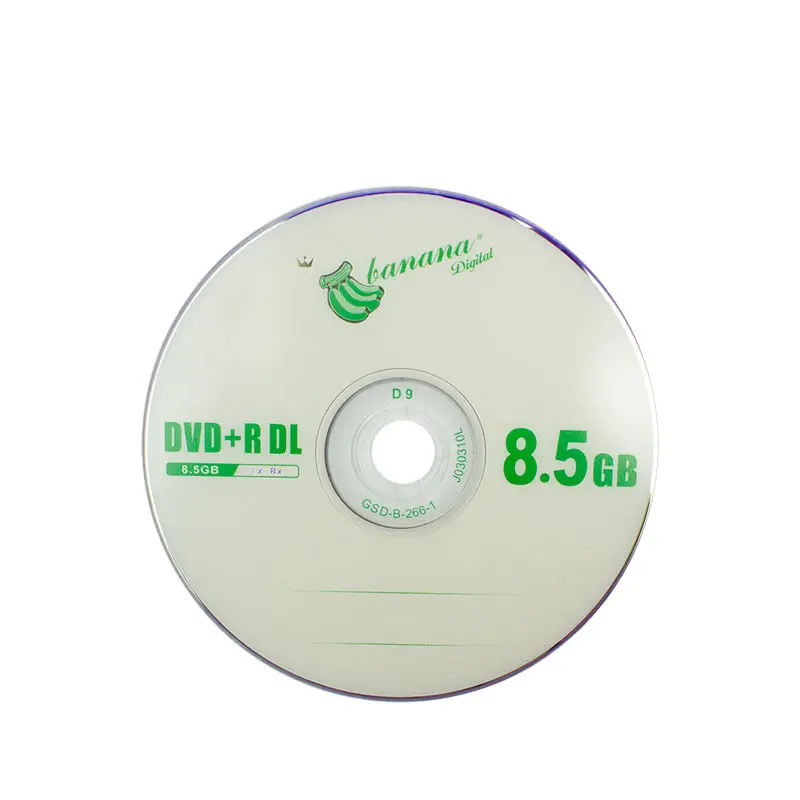

DVD

Installation tips:

My link has attched clear video instruction, pls follow the video .

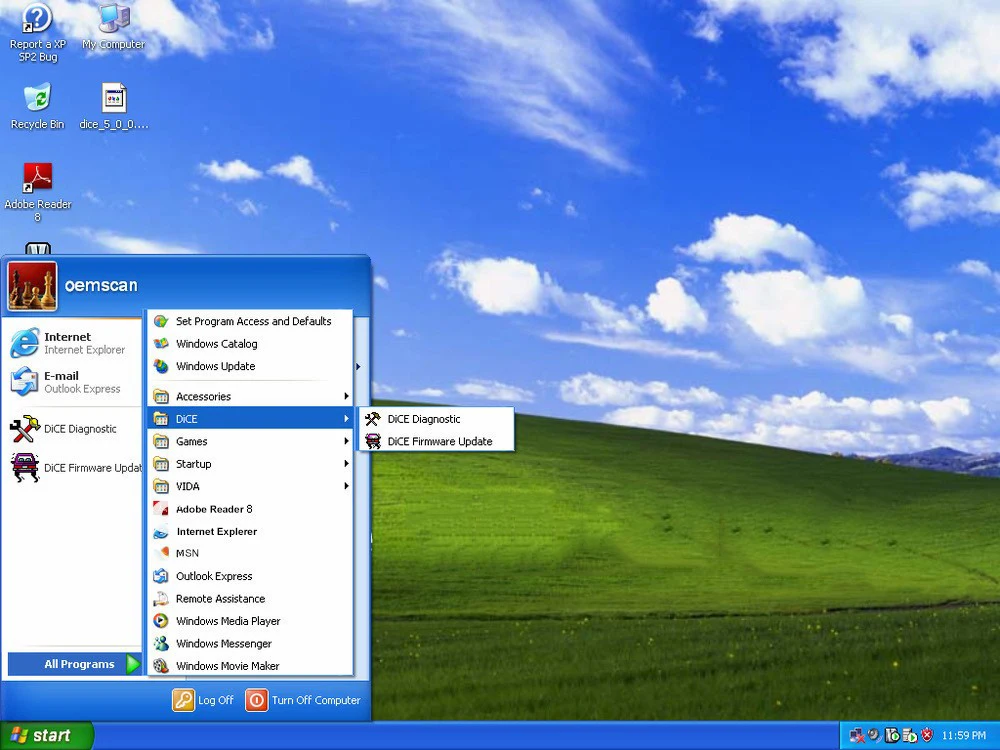

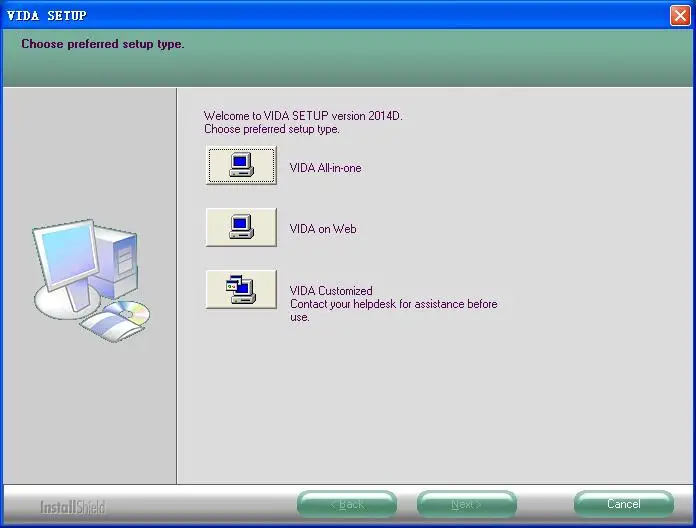

Some important Installation Steps Shows :

---User Name: 1

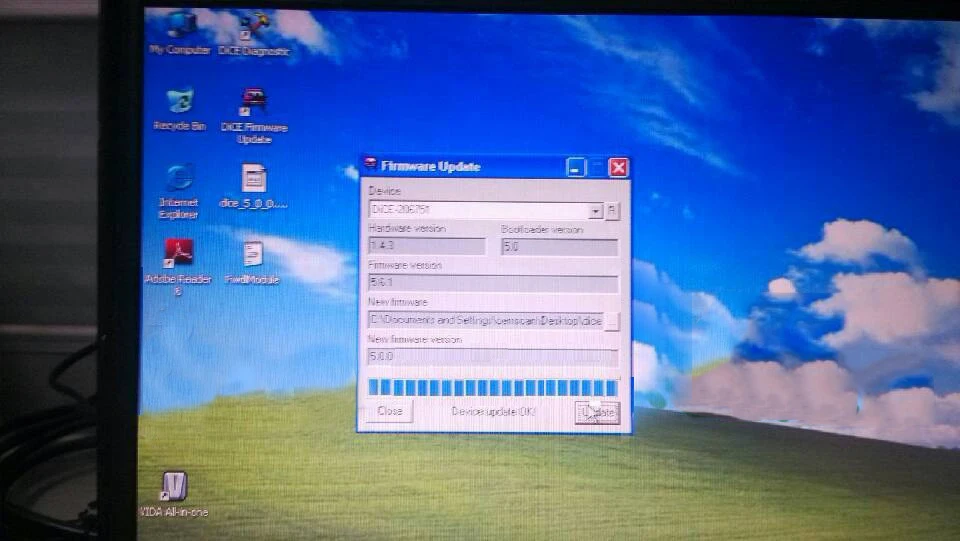

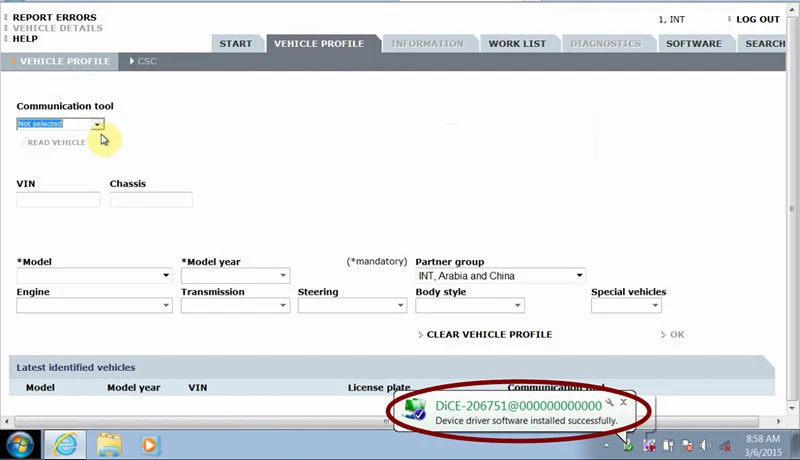

---USB Driver installed successfully Display :

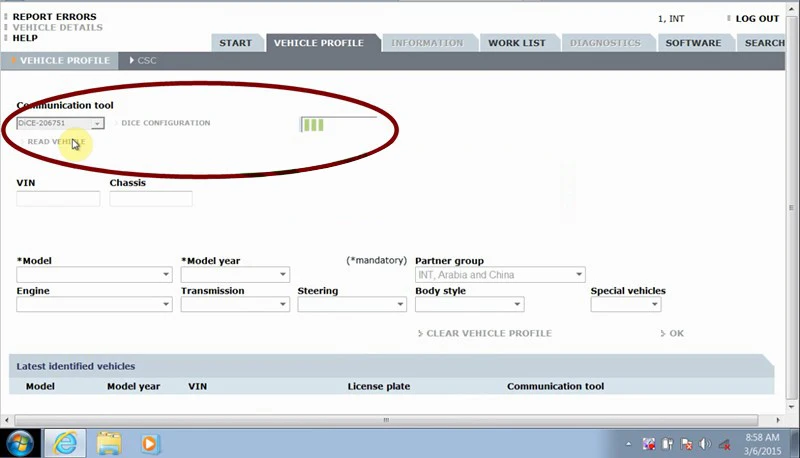

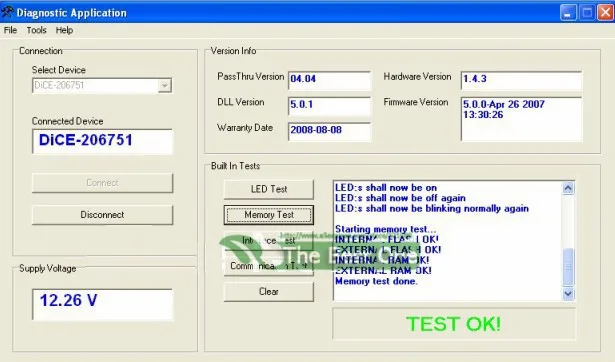

---Device And PC Communicate Successfully Display :

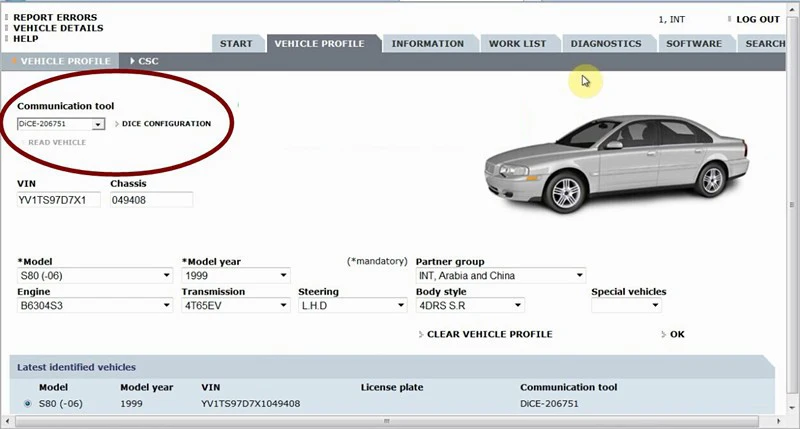

---Device Connect Car Successfully Display :

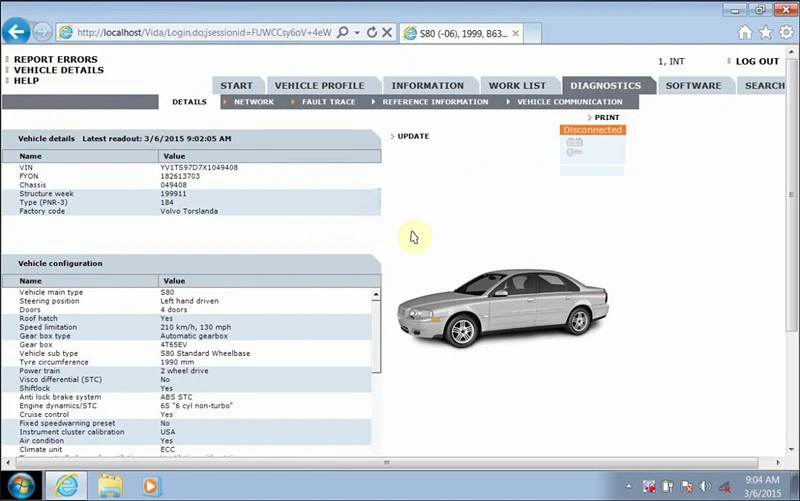

---Vehicle Details Display :

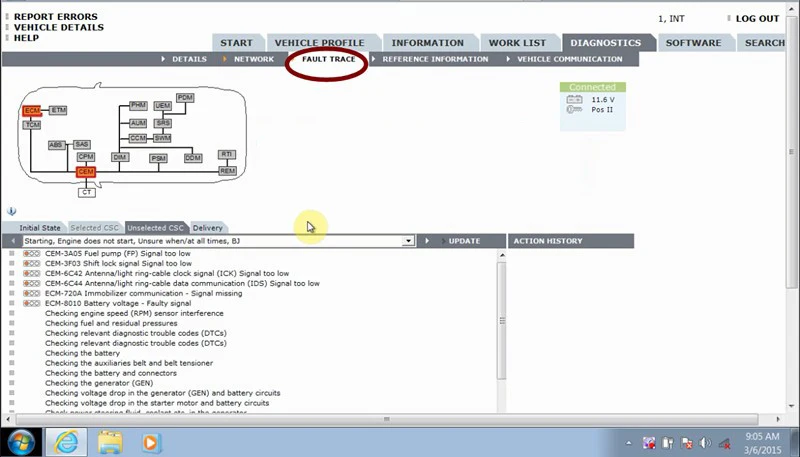

---Fault Trace Display :

Useful FAQ :

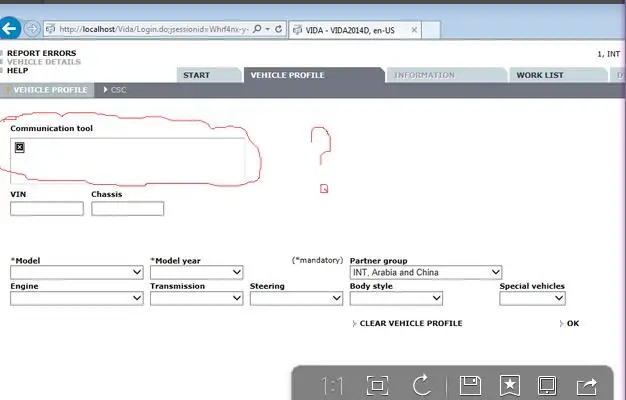

Q: If you met this problem like below picture. You can follow these steps.

A: Just run the file EnableIEHostingx86.reg for 32bit systems or EnableIEHostingx64.reg for 64 bit system. The files can be found in the folder INSTALL->Utils. Just run these file as administrator and everything works fine now!

Q:When I install Volvo Vida software,it has anerror”Security OK but Vida not OK”. How to solve the problem?
A:You need install it on Win7 32bit computer.

Q:Does Vida Dice have the function of coding programming ?Is it possible to change the language in instrument cluster?
A:No, it is a full scanner for old and new Volvo car, but it cannot do program or change language.

Q:I’m using Vida 2014D with Dice, and I’m curious about in which module I can change the “Automatic locking by speed” feature?
A:You need to be able to read/write both DIM and ICM flash memories.You have two options. Either make the reload at local Volvo dealer or someone who has an autologic interface. You could also buy some interface that is able to read/write DIM but not ICM.

Q: When I use Avdi with Volvo Vida, I have problem to communicate with all modules in car.Some modules like ECU,TCUare not in networks, but I have connection with climate control, CEM and front doors etc.In network screen I have ECU and TCU red and a text no communication. Besides,I also have problems with Avdi software.
A:We know that Vida Dice is a J2534-2compatible, whereas Avdi is only a J2534-1 compatible, which causes no communication with all modules. I’m using a Vida Dice clone and my clone is full chip 1:1 as genuine one. I started with 2008 Vida versions and I was upgraded one by one to the 2014d version now.

Q: When I go Vida all-in-one after I input the password ADMIN, it does not accept anything.
A: Please install “Vida_patch”, after complete installation, restart the computer, then it will accept.

 VOLVO VIDA DICE:
