for MB CAN Filter 18 in 1  forBenz/forBMW Universal Filter

Latest forBenz / forBMW Universal CAN Filter

Applicable vehicle list:

1. forBenz 18 types chasis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
forBMW:  CAS4/FEM Fxx

2. for BMW Model:

for BMW 1 series F2X, 3 series F3X, for BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
for BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND

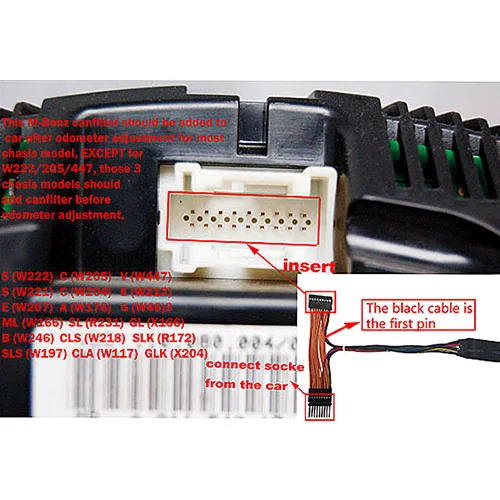

Black wire connect to plug 1

forBenz / forBMW Universal filter --- Diagram for BMW

Below is wiring illustration:

Black  --------- GND                   Red --------- +12V      White  --------- +5V
Purple  -------- L1(CAN_L1)    Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2)    Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 forBMW dot together(short circuit) BEFORE connect to car!

1. Below is the diagram forBMW 1 series F20 instrument:

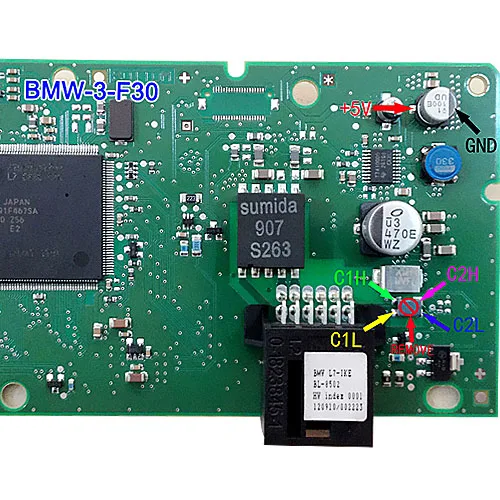

2. Below is the forBMW 3 series F30 instrument:

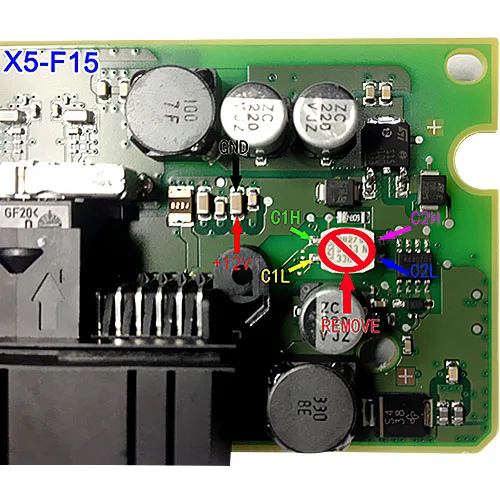

3. Below is the diagram for BMW X5 F15 instrument:

Package includeds:

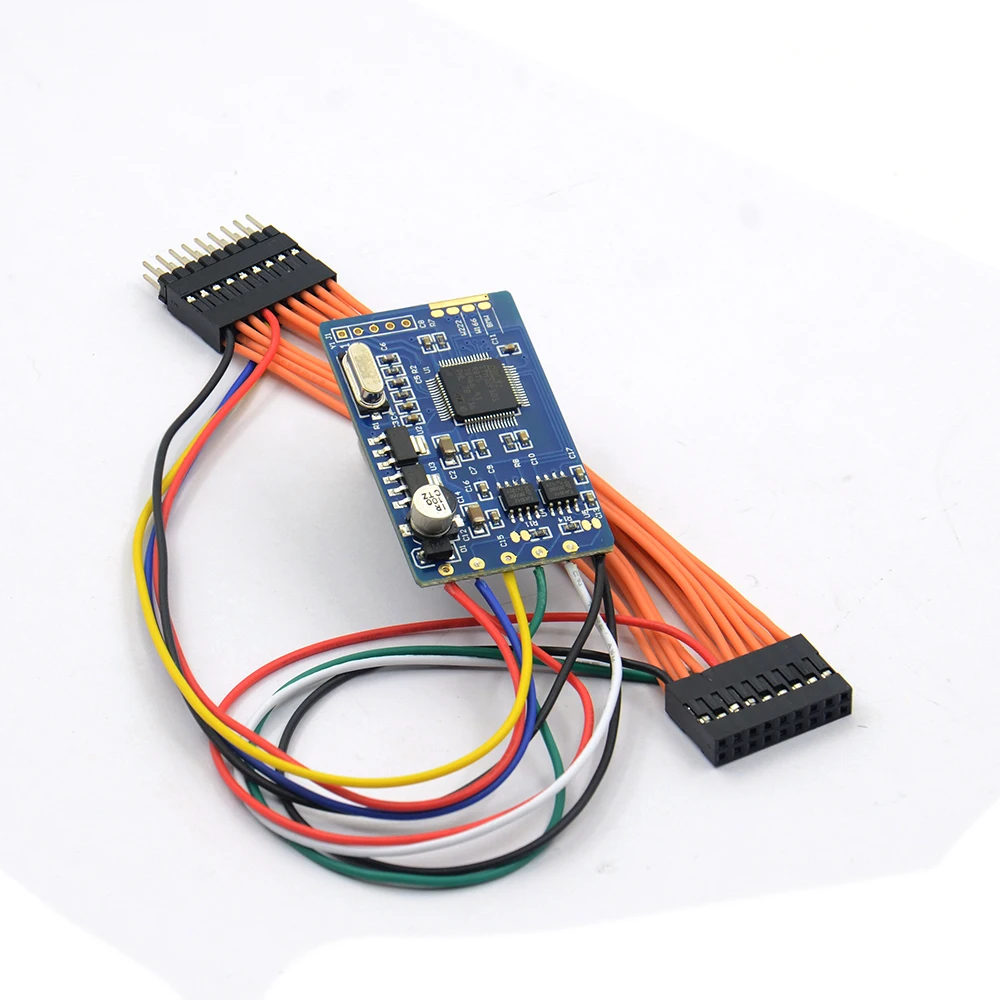

1pc x for MB CAN Filter 18 in 1 for Benz/forBMW Universal Filter
