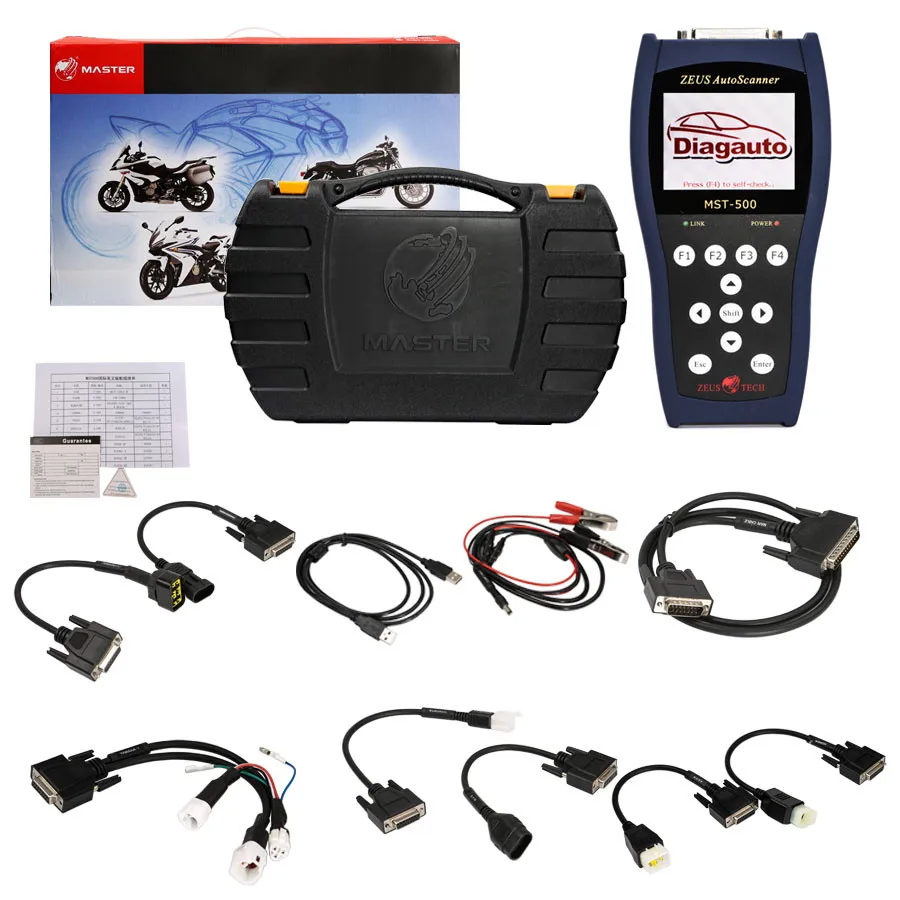

Master ZEUS AutoScanner Handheld Scanner MST-500 OBD Scanner for Universal Motorbikes which can support most brands of the world

Product Detail

Video

Tech Support

Reviews (0)

Write a Comment

After-sales Service

MST-500 Motorcycle Diagnostic Scanner Tool For Most Asian Motorcycles

Description:

1, Hand-held operation, convenient and flexible to use
2, Support for SD cards to store data and upgrades, more convenient and easier
3, Reserved CAN bus interface
4, 3.2-inch color screen, clear display.

Functions:

1. Read the information system
2. Read the data stream
3. Read fault codes
4. Clear fault codes
5. Freeze data
6. CO Idle speed adjustment

Features:

Power: DC10-15V
Operating Current: 250mA
Screen: 160 * 105 LCD
Keyboard: membrane keyboard
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port

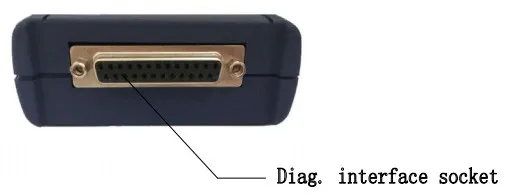

Communication ports: COM port

1, Support Motorcycle:

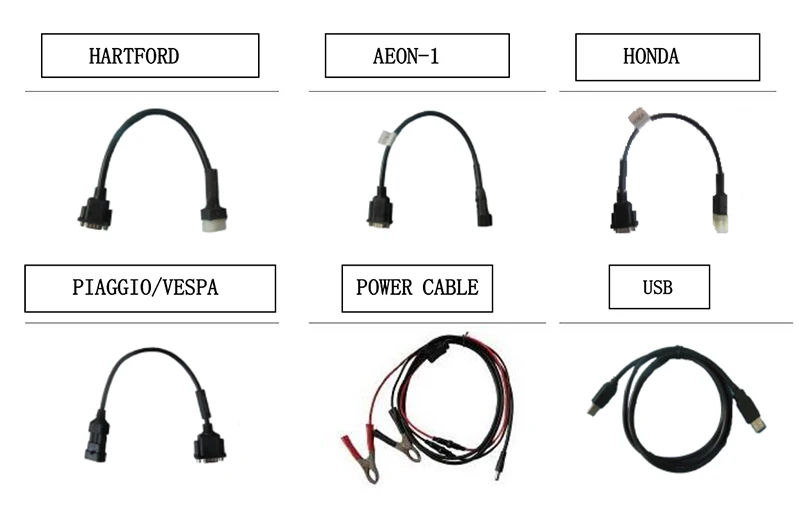

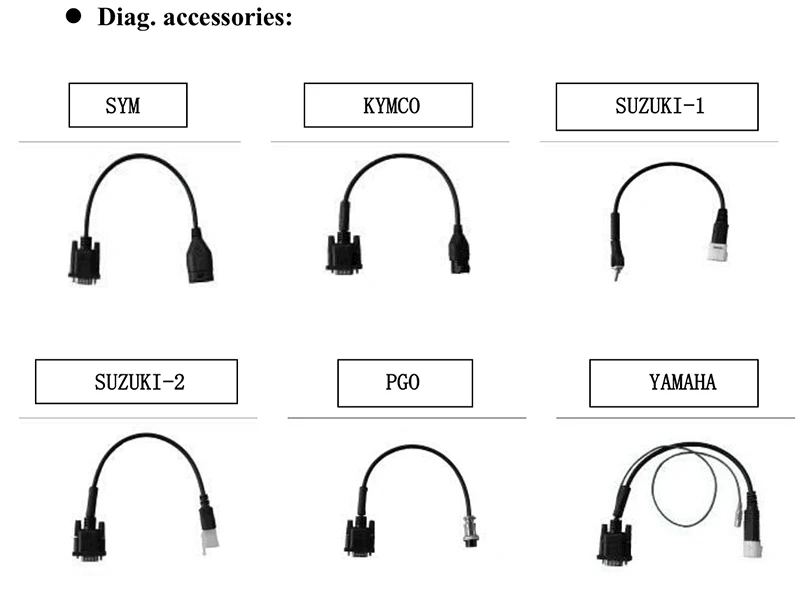

for SYM , KYMCO , SUZUKI,PGO,YAMAHA,HARTFORD,AEON,HONDA,PIAGGIO , VESPA

2, Support Function:

(1) ECU information
(2) Dynamic Data
(3) Read fault code
(4) Clear fault code
(5) Component Test
(6) Special function, such as: Accelerator reset, ISC reset, CO volume adjust etc

You can check the dynamic data by numerical curve change in waveform.

motorcycly list file at top of Related Download Files.

	SH125ESP/SH150ESP,SH MODE,FUTURE NEO FI,FUTURE X FI FUTURE 125 FI,SCR 110
Thailand	MSX 125(13~),CLICK-I(~08),CLICK-1(~10),CLICK-I(12~),SCOOPY-I(~10) SCOOPY-I(~12),WAVE 110-I(~08),WAVE 110-I(~09),WAVE 125-I(11~)
Laos Cambodia	CLICK-I(~08),CLICK-I(~10),CLICK-I(12~),SCOOPY-I(~10,)SCOOPY-I(~12) WAVE 110-I(~08),WAVE 110-I(~09),WAVE 125-I(11~)
SYM	RV250,Mio50/100,Woo100,RX110,RV180,R1-125,Fighter 150VIP,Fighter125 GR125,GT125,Tini100,WOWOW100,NEW RV180,JET POWER,NEW FIGHTER 150 T1,T2,Mii110,iRX115,JET POWER EVO,RV250 EVO,GTS300,MAXSYM 400i,GT 125 EVO Z1 125,GT150,GT125 Super,New Fighter 150,RV270
KYMCO	XCITING 250,XCITING 500,NIKITA 300,NIKITA 200,RACING 180,X-MODE 100R,JR AFI 100, VENOX 250,TECHNO GT 125,DINK AFI 180,V1 150,V2 150,AIR 150,GP2 125,RACING 125 RACING 150,VJR 100,MANY 100,V1 125,KTR 150,NEW DINK 180,MANY 110,MANY 50,KIWI100 VJR 110,VJR 50,MyRoad 700,venox 250,CANDY 110,V2 125,GP2 125,GP2 150,CUE 125,G6 125, G6 150,K-XCT 300i,XCTING 300,XCITING 400,VENOX 260,RACING KING 180,MANY 125,GP2 150
YAMAHA	VINO FI 50,RS-Z FI100,MAJESTY FI 125,GTR 125,BWS 125,CUXI,NEX GTR,CIAO,FANCY 50, SMAX 150,BW'S X 125,CYGNUS-X 125,GTR aero 125,Jog Sweet 115,Jog Ciao 115,RAY 125

Update:

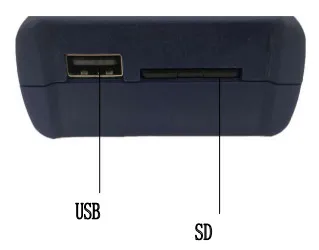

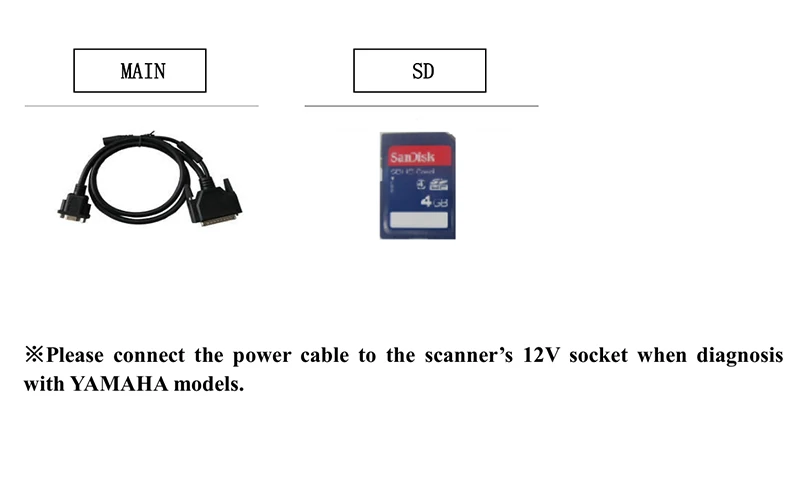

Easy update, only need to connect PC with SD card , Click "USB memory" in the manually, you can see PC find new SD card after you click OK. Then, you can copy the update file into SD card , then plug off SD card from PC side, then you can finish update according the notices.

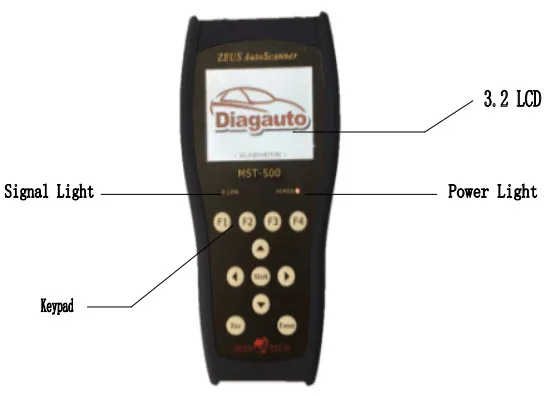

Scanner appearance and buttons:

XXe
