DY2015 12V Car Battery System Tester Capacity Tester Maximum Electronic load Battery Charge Test





Introduction:

DY2015 series storage battery testers are used for activated style leadacid storage battery.

Precise circuit and strong digital processing unit make it complete collection of a series of complicated data and figure out every test data, which availably by 4-wire Kelvin test connection. Besides it strengthens input protection inside , in order to prevent such situations as polar reversal connection, over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.

This tester is the best tool for battery sales, vehicle repair and condition check of all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery.



Features:



Conforms to CAT III 600V

With large LCD display, easy to read the value

Fully diagnose the battery status and car charging system

Battery test: cold cranking amps, battery resistance, voltage, life analysis

Engine system test: the change of battery system with the process of startup

Charging system test: the charging system working state of the output

Maximum load system test: the maximum load state of battery

Rich Parameters measured and displayed for battery condition diagnose

Overload protection and wrong connection protection keeps operator always safe

Easily read out conclusion of battery condition good/OK/pay attention/replace

Loose lead detection, unit conversion CCA/IEC/EN/DIN







Specification:



specification

Range

CCA

100~1700

IEC

100~1000

EN

100~1700

DIN

100~1000

JIS

Reference table in manual

Displays Battery Internal Resistance

Display ohms

Displays Battery Voltage

Display volts

Displays Battery Condition

good/OK/pay attention/replace

Test 12V Batteries

Battery Recharge Indicator

Reverse Polarity Protection

Detects and Displays Bad cell

Loose Lead Detection

Internal Unit Conversion EN,EIC,DIN

Overload protection of input voltage

Cable Length

700mm

Dimension

180 * 90 * 32 mm

Weight

400 g

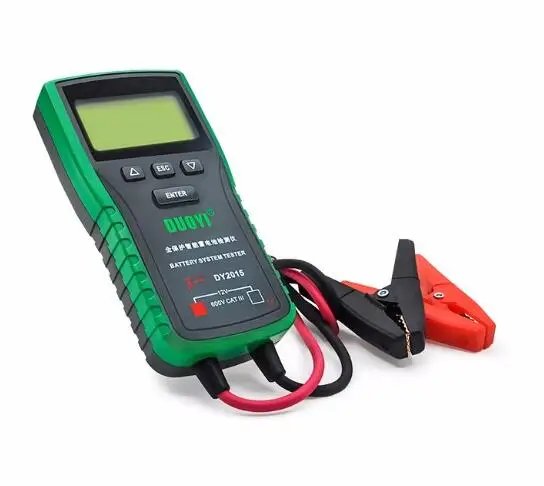

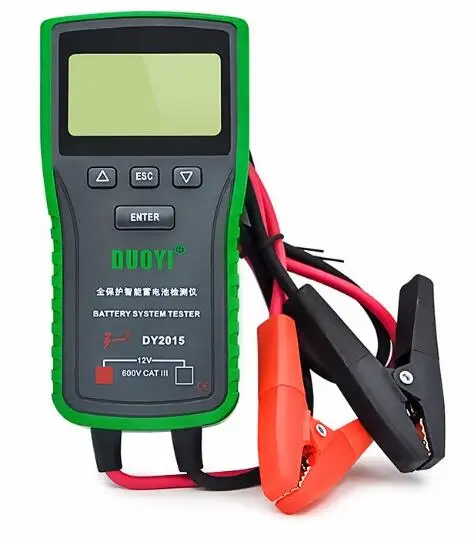

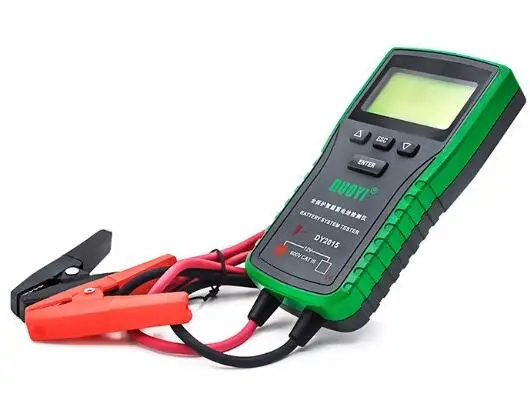

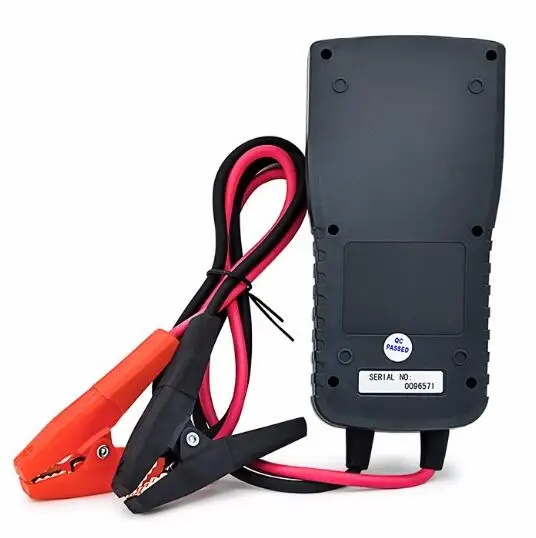

DY2015 1DY2015 2DY2015 3DY2015 4DY2015 5









Package Including:



Package Content:

1 x DY2015 Car battery tester
