2018 High Promotion Latest Version XPROG 5.74 Black Metal Box ECU Programmer
Item No. AEP-01-D
History: 64 sold
5 stars, 42 reviews.
Out of Stock
Latest price: $125.00 You save $15.00 12% off
Buy It Now: $ 110.00
Quantity : - +
Weight:
1.000KG (2.205LB)
Packge:
Return:
Return for refund within 7days,buyer pays return shipping. Read details
Buy more related tools and Save more!
(32)
Top 3 Reasons to Get X-PROG
1. Language: English
2. Newest Version V5.70
3. Operating system:  Windows XP 32-bit or Windows 7 64-bit
Latest price: $132.00 17% off
Buy It Now: $110.00
(33)
Top 4 reasons to get KTAG V7.020:
1. With latest Firmware version: V7.020
   Software version: V2.23
2. Add ECU Type: Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU,Toyota 76F, and so on, at least 100 more ECU Types added.
Latest price: $85.00 16% off
Buy It Now: $72.00
Product Detail
Video
Tech Support
Reviews (0)
Write a Comment
After-sales Service

Newest version arrival  Xprog 5.74 ECU Chip Turning Tool x-prog 5.70 ECU programmer

xprog5.70



31

SU1 5.74

1. XPROG-M V5.74 X-PROG Box ECU Programmer


Install Note:

There must be two hard disk divisions at least, can't work if it's only one in the computer.( Can not be working with virtual harddisk)

Please Close Anti-virus programmer before run software.

If CD broken in shipping way ,please feel free to CONTACT US to send you download weblink.

When you do the registeration,send us the activate file ,then our engineer will activate and send back to you.



Top 5 Reasons to Get Newest XPROG-M V5.74:

1. Latest software version: V5.74,Firmware:V3.9
2. The only version XPROG-M which can decrypt new version BMW CAS4.
3. Without USB Dongle, it is more convenient and secure.
4. Add new authorization: AUTH-0025 Authorized 13/3/2016
5.  Language:English,Chinese
6. No operation system limitation, software can be installed on Windows XP/WIN7..


XPROG-M V5.74 using tips:

1. You are disallowed to use this newest dongle to update the older version Xprog to V5.74
2. Close all of the computer anti-virus software. If not, X-prog software may be killed.
3. Disconnect the internet. If not, the internet may damage the hardware.
4. Uninstall all the old version xprog-m or xprog box software before you install V5.72 software we provide , because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty...
5. Never try to UPDATE, the hardware will be damaged if you want to try to upgrade it online, without any warranty.

XPROG-M V5.74 Authorizations:

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 11/4/2014

XPROG-M V5.74 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

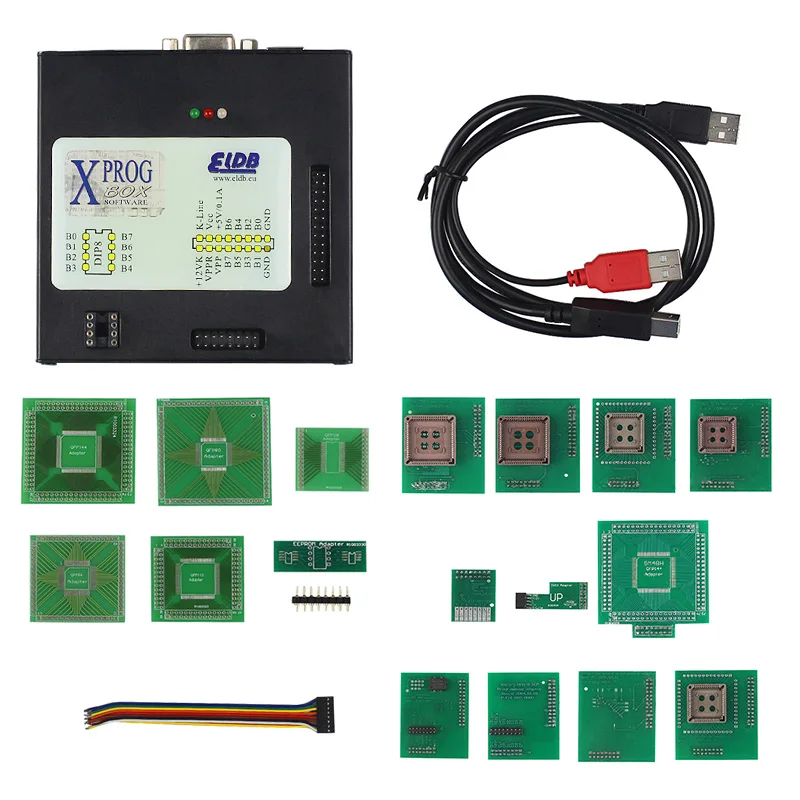

Package Includes:

1pc  x  XPROG-Box Hardware (Aluminum Enclosure) .
19pc x  Adapters Set
1pc  x  USB Cable.
1pc  x 16Pin cable
1pc  x  CD with XPROG-Box Software (V5.72)



2.XPROG V5.60/ XPROG V5.70

1. Language: English
2. Newest Version V5.60 /v5.70
3. Operating system:  windows xp 32 bit or windows 7 64 bit

Notice:
1. If your X-Prog is older version,cannot use this newest dongle to update to V5.60

2. Close all of the computer anti-software. If not, X-prog software may be killed.

3. Disconnect the internet. If not, the internet may damage the hardware.

4. Uninstall all the old xprog-m, or xprog box software, make sure that your PC only install our software for our xprog-box 5.60 , our xprog-box hardware cannot work with other lower or higher software. If not, the hardware will be damaged, and will lose its warranty...

5. Never try to UPDATE, the hardware will be damaged if you want to try to upgrade it online, without any warranty.

6. We cannot refund, cannot exchange, can not repair if you do not listen to those advices. It means that you accept those conditions if you have ordered our xprog-box.

XPROG-M V5.60 Authorizations:

AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 forBM-W EWS3 authorization

AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 forMB ZGS001 authorization

AUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, viewange mileage,chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx(New added)

AUTH-0023-2 XC23xx(New added)

AUTH-0024-1 MC9S12Cxx(New added)

AUTH-0024-2 MC9S12XE(New added)

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

AUTH-0025-1 MPC/SPC5xxx (newly added)





Compared with Xprog 5.60/5.70, V5.74have additional function as follow photos shows:

12
